Chord Symbol Not Showing

Greetings,

In the attached file I have been unable to enter the chord symbol Eb/E in bars 27 & 30 on beat 4.

Thank you for your time.

Mark
Ballad (Andy) Score - 12_Upright Bass - Flow 1.dorico (1.3 MB)

Hi,

Two options:

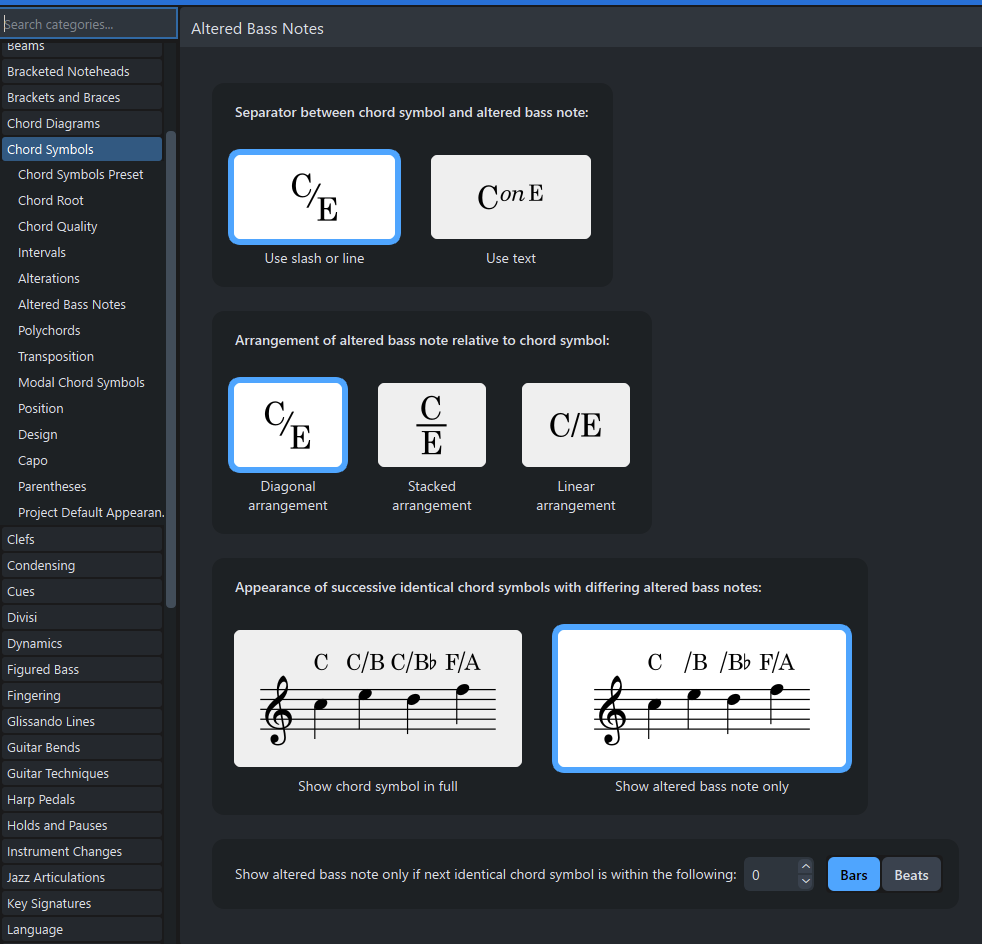

In Engraving Options> Chord Symbols > Altered bass notes >Appearance of successive identical chord symbols with differing altered bass notes… select Show chord symbol in full

Or, just below that option, in Show altered bass note only if next identical chord symbol is within the following change the value to 0 bars.

2 Likes

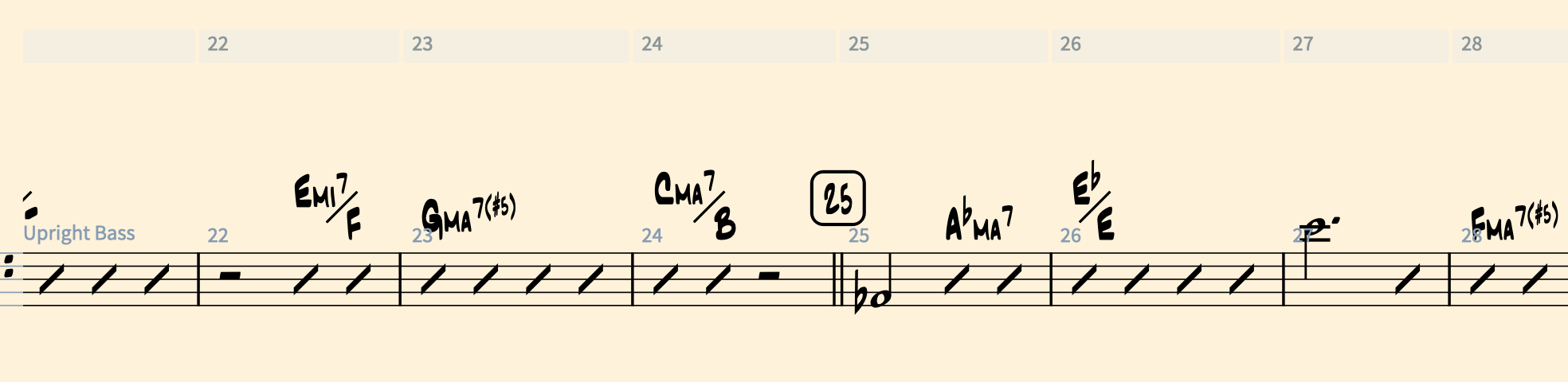

BTW, @pabnermusic, I notice that you have four hidden measures:

Intentional? (See how your System Track bar numbers and written one dis-align (is that a word?) by five bars on the system with written bar 25?)

Odd, since they’re aligned in Galley View:

EDIT: Actually, that System Track in mm. 28–32 is just floating up way above its staff. Hmm…

Fixed! Thank you!

Certainly not intentional. I did delete some bars and added new ones when I realized the meter could be simplified. That change was made at bars 12, 13 & 14.
