How does one make side-chain audio input available in the sample recorder?

Virtual instruments HALion
,
1

Sorry to be futzing with the basics here, but I haven’t been able to figure this out. Can someone point me in the right direction? I’m running audio input from a mono channel into Halion 6 in Cubase 10.

1-sidechain.jpg1152×648 43.2 KB

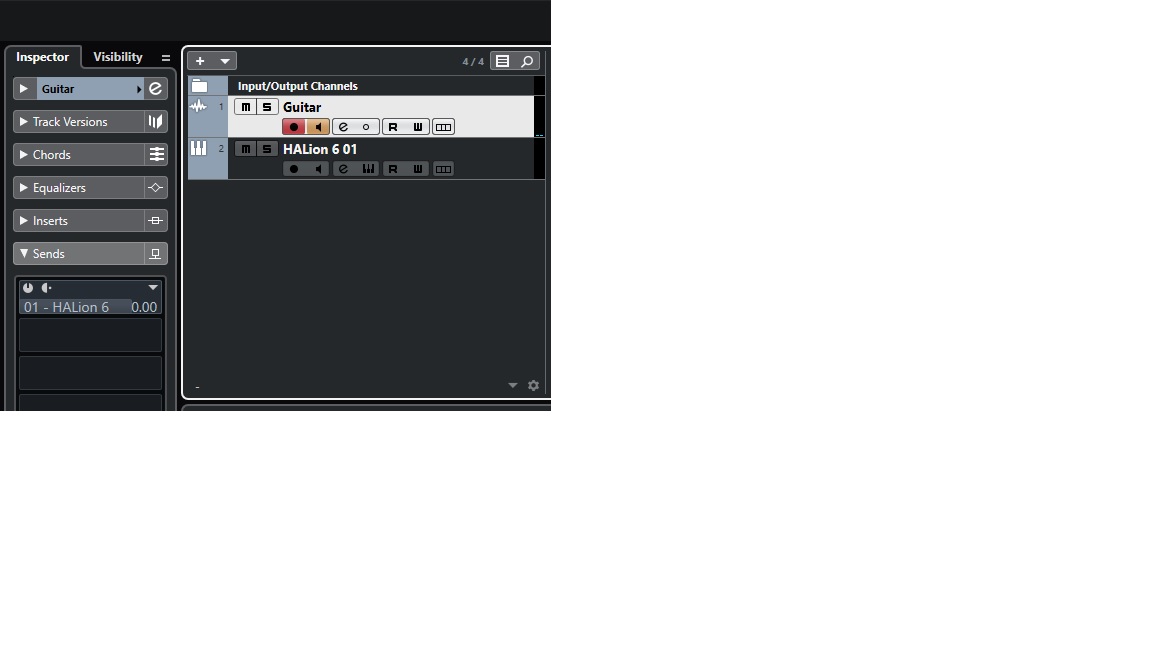

I’m sending the audio channel output to the Halion 6 side-chain.
2-sidechain.jpg1262×836 57.1 KB

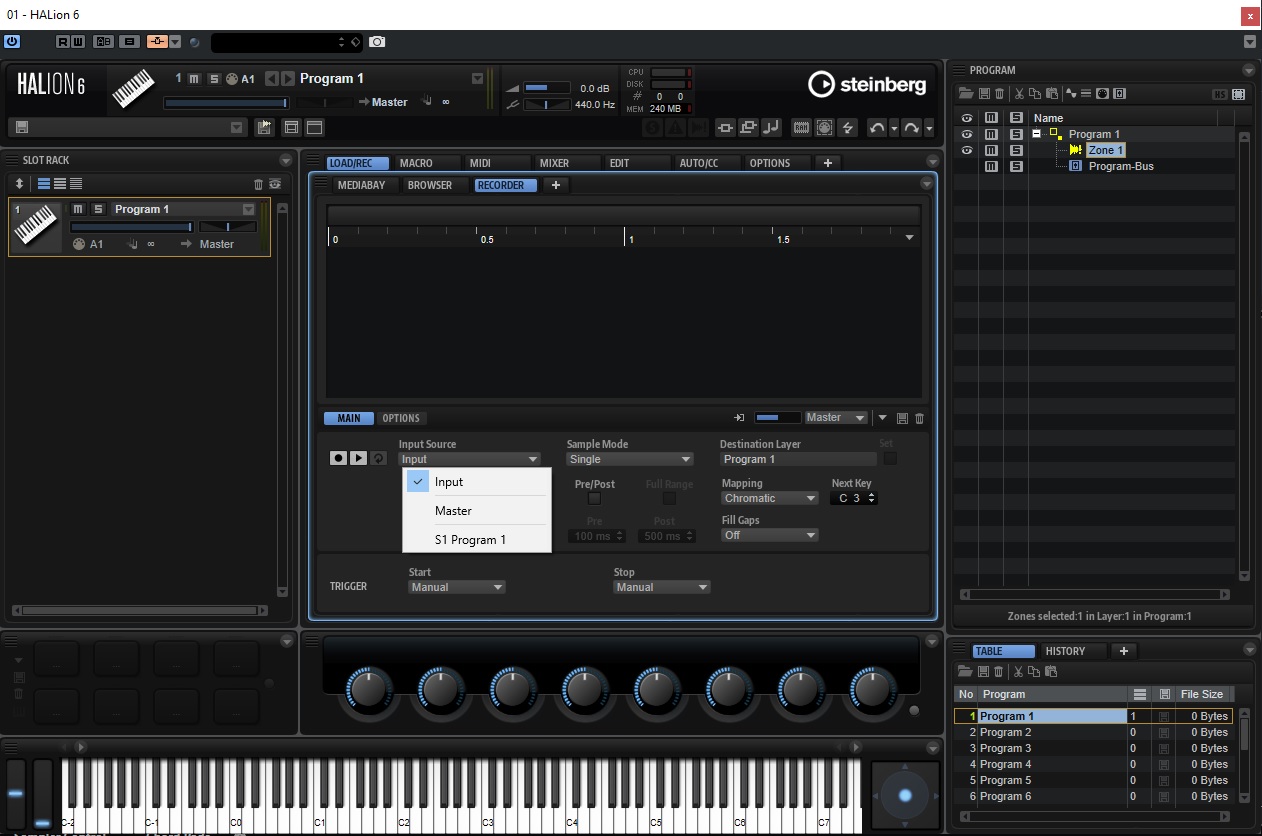

Enabling the side-chain input in Halion 6: the side-chain audio channel is visible here and receiving a signal.
3-sidechain.jpg1262×836 186 KB

There’s no input signal showing up in the sample recorder, and I don’t see anything obvious in the GUI for monitoring the side-chain input in the recorder.

On another note, I’m not sure what the exclamation mark means over the zone label icon. Is something misconfigured here?

Thanks for your help!

2

To answer my own question:
Apparently you need to send the side-chain audio as a direct send in the audio track, not as a send. You can make the direct send section of the inspector visible by looking in the “setup” menu located at the bottom of the inspector when the audio track is selected.
