Open staff at end of flow

Dorico
1

How can I achieve this?
instead of this
I only get the barline at the very end, but how to leave it open like on the 1st image.

Thanks for you help!

2

You could reduce the threshold for horizontal justification for final systems and then show blank staves after the end of final flows (Setup > Layout Options > Page Setup > Flows > After end of final flow)

This will fill the rest of the frame with blank staves, but you can control that by changing the size of the music frame.

3

My trick for this is to set barline dash length to 0, then create a dashed barline to end the line. You may need to insert and hide some rests as well.

1 Like
4

Thanks for your help, but in that category it doesnt show ā€˜after end of final flowā€™ for meā€¦

5

Thanks for you tip, Dan. I donā€™t know where to set the barline dash lenght, but thanks to your comment I got the idea to just insert a new bar with a barline after 1 eight note and hide the rests.But now I cant hide the final barline, even if I set the colour to white. It still shows in blackā€¦

6

Do you have Dorico Pro or Dorico Elements?

7

Dorico Pro 3.1.10

8

@dan_kreider, why misuse a dashed barline when thereā€™s a Notation Option for final barlines?

@doricorn try this:

1 Like
9

I got it so far: image
But cant remove the barline at the very right

10

Thanks that looks like a great solution, but it seems like this is only available in 3.5 not 3.1?

11

Itā€™s available in 3.1 too.

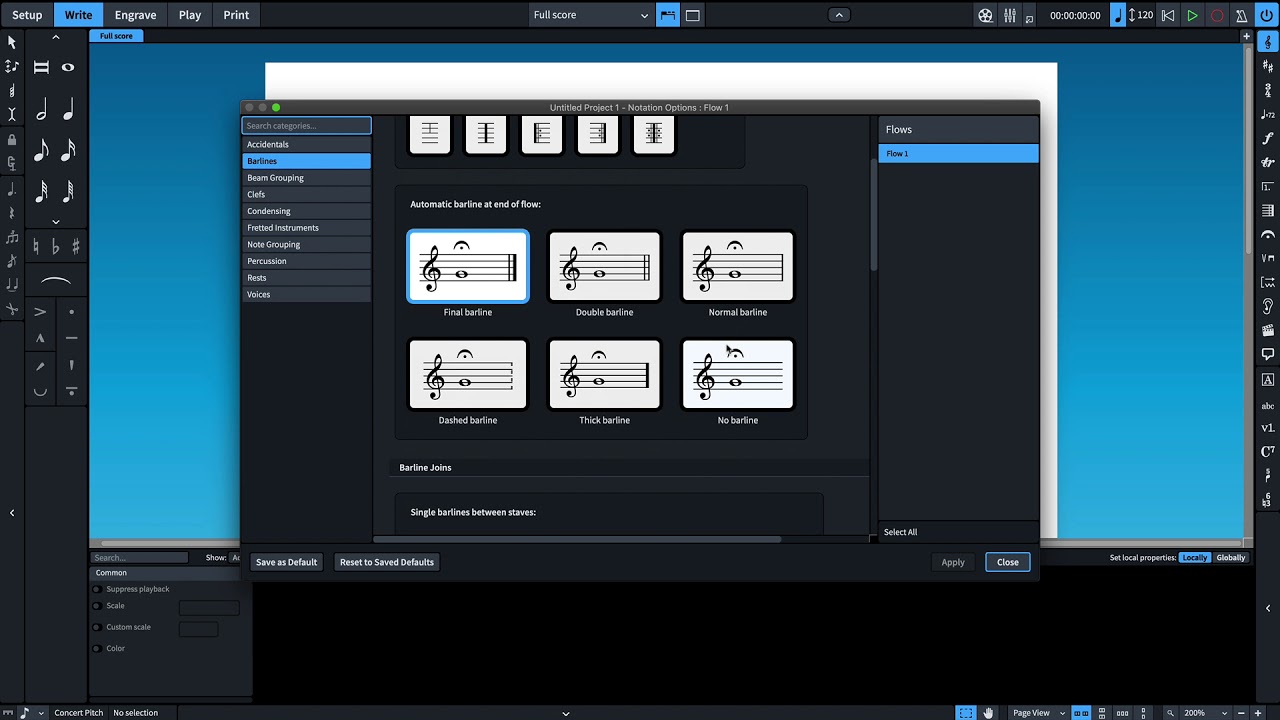

image1453Ɨ931 208 KB

12

Ah thanks so much, my fault. Thatā€™s a game changer :smiley:
Got a little confused because my dorico is in German, not English.

13

@pianoleo the barline-end option doesnā€™t work for me, but Iā€™m glad itā€™s a better solution in this case.

In my case, I need the ability to reduce the manual note spacing after the final note in a partial measure, so I canā€™t just use a mid-measure system break, because it doesnā€™t produce a spacing handleā€¦ I also have to add an ā€œinvisibleā€ barline.
