Problem with snap to grid

Allan_Valenzuela · July 6, 2025, 7:55am

Hi, im using cubase 14 in windows, and im having a proble when i duplicate an audio clip…
When i select the clip and alt and move to another place of the same audio track the clip is snaping at the end of the grid and not at the start like the original clip.

I have this issue not with all the clips, and channels…but with some of them…

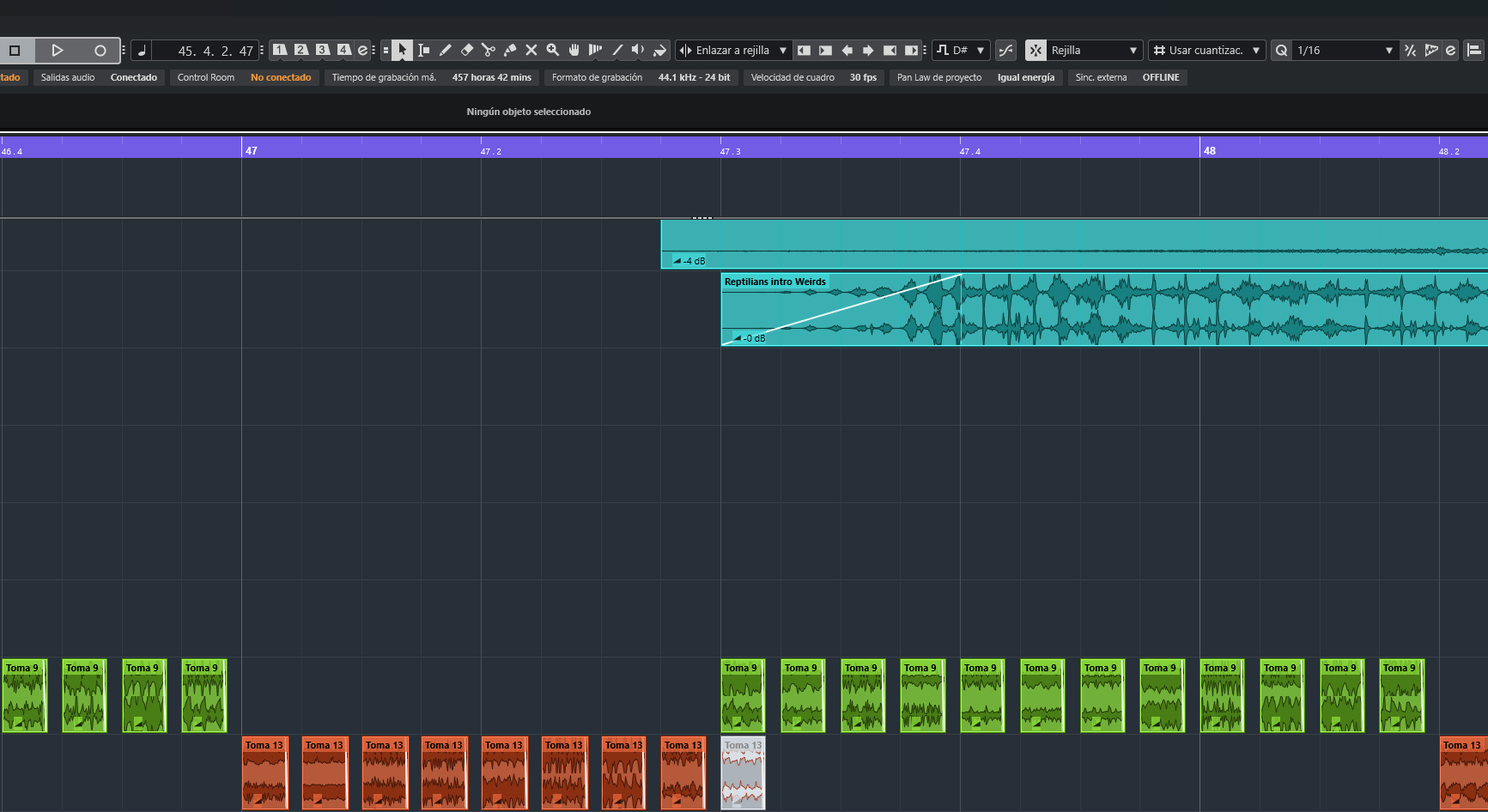

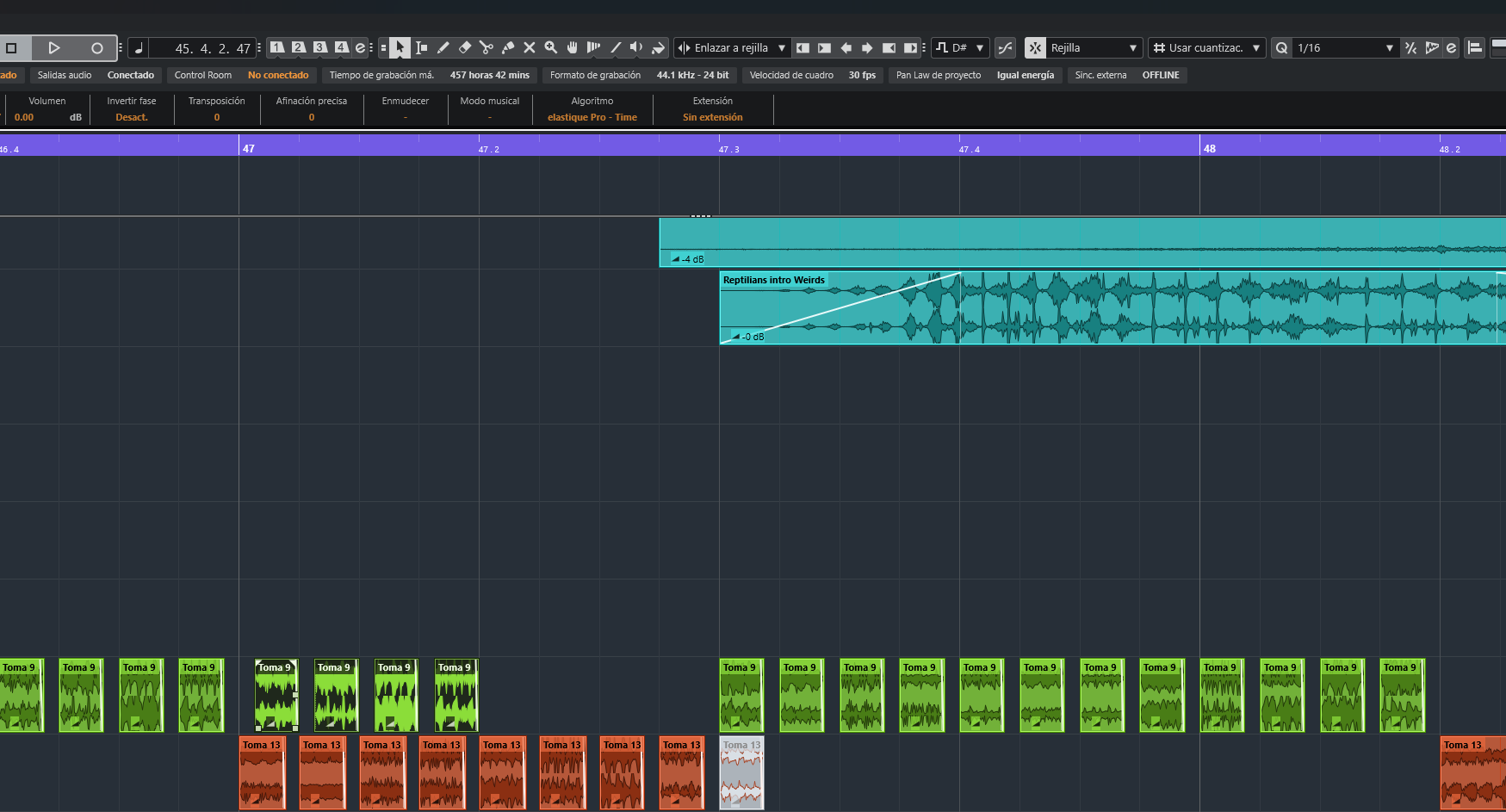

The first pic shows the clips in correct snap to the start of the grid, and the second pic shows a duclicated part snap to the end of the grid…

My settings are in spanish…but says GRID and is ON.

Maybe i press a combo of keys that change my configuration…plase help me.

Thanks

mlib · July 6, 2025, 8:04am

Could you double click on one of the copied events and verify, in the sample editor, that the snap point is at the start of the event?

Allan_Valenzuela · July 6, 2025, 6:43pm

First Pic of the clip original

Second pic of the duplicated clip

Reco29 · July 6, 2025, 7:25pm

Hi,

maybe you have accidently moved the Snap Point within your audio event?

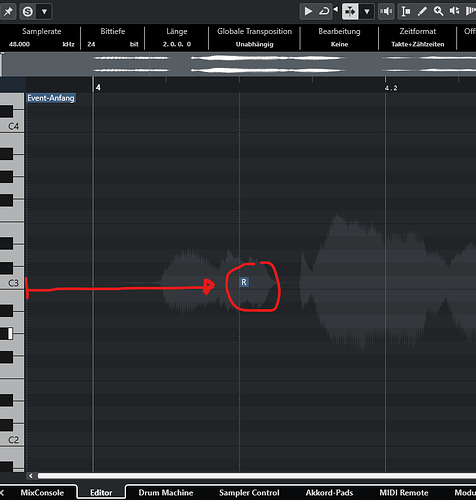

The screenshot displays an “R” - the English version shows an “S” for Snap Point. If you have moved it from the left somewhere to the right then your sample will snap at this position.

Allan_Valenzuela · July 6, 2025, 8:19pm

Thank You a lot…
