Audio engine hangs in Dorico 5.1

Running 5.1.81 on MacOS Sequoia. Twice now today, I have been editing a long score, with two versions of the same score (separate files) open at the same time. While switching between the two files, I begin to notice the spinning beach ball cursor appearing, first for a few seconds, then for a few more, and then finally it hangs indefinitely. If I force Dorico to quit, and then try to reopen, it hangs on initializing the Audio Engine and cannot start.

This happened first under Dorico 5.1.70, and so I updated my Dorico to 5.1.81 in hopes that this was a fixed bug. Unfortunately, it is not :frowning: And during the update, I noted that apparently, the reason Dorico cannot connect to the Audio Engine is that there is a running instance of the process… but since I do not know its name, I could not even safely stop it with a kill command from the Terminal.

A reboot will fix the problem, but how to prevent this in the first place? And while the cursor is spinning, is there any way to at least stop it from doing what it is trying to do (I tried Cmd-. and several other keystrokes, including Esc, to no avail)? I have now, twice today, lost over an hour of work to this problem.

Any answers will be appreciated. Thank you.

When you switch between documents, the Audio engine deletes the VST data from the ā€˜out-going’ document, and loads the VSTs and samples for the ā€˜in-coming’ document. That takes time.

If you switch back and forth while that’s still in progress, it’s possible that the engine could hang.

There are application Preferences to either not load the samples in additional documents; or to ask you whether you want to ā€˜activate’ the audio, or not.

Does Dorico do this each time you switch between documents, or only the first time the ā€œincomingā€ document is opened? It would seem to have to do it each time you switch, in order to explain what has been happening. And if it does it each time, why? The scores are nearly identical (different versions of the same score) - the VST in both documents is NotePerformer, and there are no samples to load. Why does it have to load and reload the VST each time?

Hi @krummholz, because it is simply too complex to work out the difference between two projects and to decide which difference can be ignored and which one is relevant. You already can’t compare the internal plug-in states, because it is just binary data, a blob of data that only the plug-in can properly interpret. And even if you do a binary compare, what if just one byte is different, can you ignore it or not? With a reasonable amount of programming and cpu power you can’t work it out, so it is better to scrape everything and start building a project setup from new.
And the audio engine process turns up as every other process in the Activity Monitor. It is called VST Audio Engine and can be killed like any other process, nothing special about it.

This is why you can set Dorico to not load the audio in secondary documents. And you can turn off the audio with the big power button next to the Play button.

If the audio isn’t activated in the secondary document, then you can switch back and forth effortlessly.

Thanks, but the difference or similarity between the two projects isn’t really relevant, is it? The VST in both projects is NotePerformer. Why does Dorico have to load a VST that’s already loaded, time and time again? Why doesn’t it just check, VST for this project loaded? If no, then load it; if yes, then do nothing. Shouldn’t take several seconds if already loaded. If it is unloading the VST before checking if the other project uses it, then that sounds brain-dead, imho.

And unfortunately, the number of processes in the Activity Monitor when Dorico is running is astronomical. Basically little different from ps -ef in Terminal. Too much to sift through. Only after killing Dorico was I able to find it, as it was the only process with the string ā€œDoricoā€ in its name.

Yes, looks like I’m going to have to do that… though I’ve gone back and forth between two projects before and never encountered this problem until today.

Agreed. It isn’t relevant.
Project A simply does not know anything about the Sound Engine settings of Project B.

1 Like

Because it’s not just whether the VST is loaded, but how it’s configured. Does it have Strings and Brass instruments, or Woodwind and Percussion?

Hi @krummholz, regarding Activity Monitor and the amount of processes.
Yes, there are tons of them , but for example the Process Name column you can sort by alphabet, just click on the column header. By that they don’t jump around any more and are easy to find. But the Activity Monitor has also a search function, have a look for the field with the magnifying glass.

Are there different NotePerformer configurations? As far as I know, if you select NotePerformer you get everything - it’s not a sample library, it’s all synthesized.

Oh sure, and I can pipe the output of ps -ef through grep (in Terminal), but that still leaves a ton of processes with ā€œAudioā€ or ā€œaudioā€ in the name.

In any case, I have Project Activation for subsequent projects set to ā€œaskā€, which should prevent this from happening again (I hope). The fact that the delays got gradually worse before hanging altogether - it wasn’t just a sudden, out of the blue hang - makes me suspect a memory leak or some other internal bug in Dorico. I’m relatively new to Dorico but have used Sibelius for years, also with NotePerformer, and never encountered this issue or anything similar. Other problems and bugs, yes, but nothing that caused me to lose hours of work.

There is only one process called ā€œVST Audio Engineā€. That’s the one you need to kill if it’s still running.

Dorico should be auto-saving every few minutes; and makes backup copies of your own manual saves, so you shouldn’t lose hours of work.

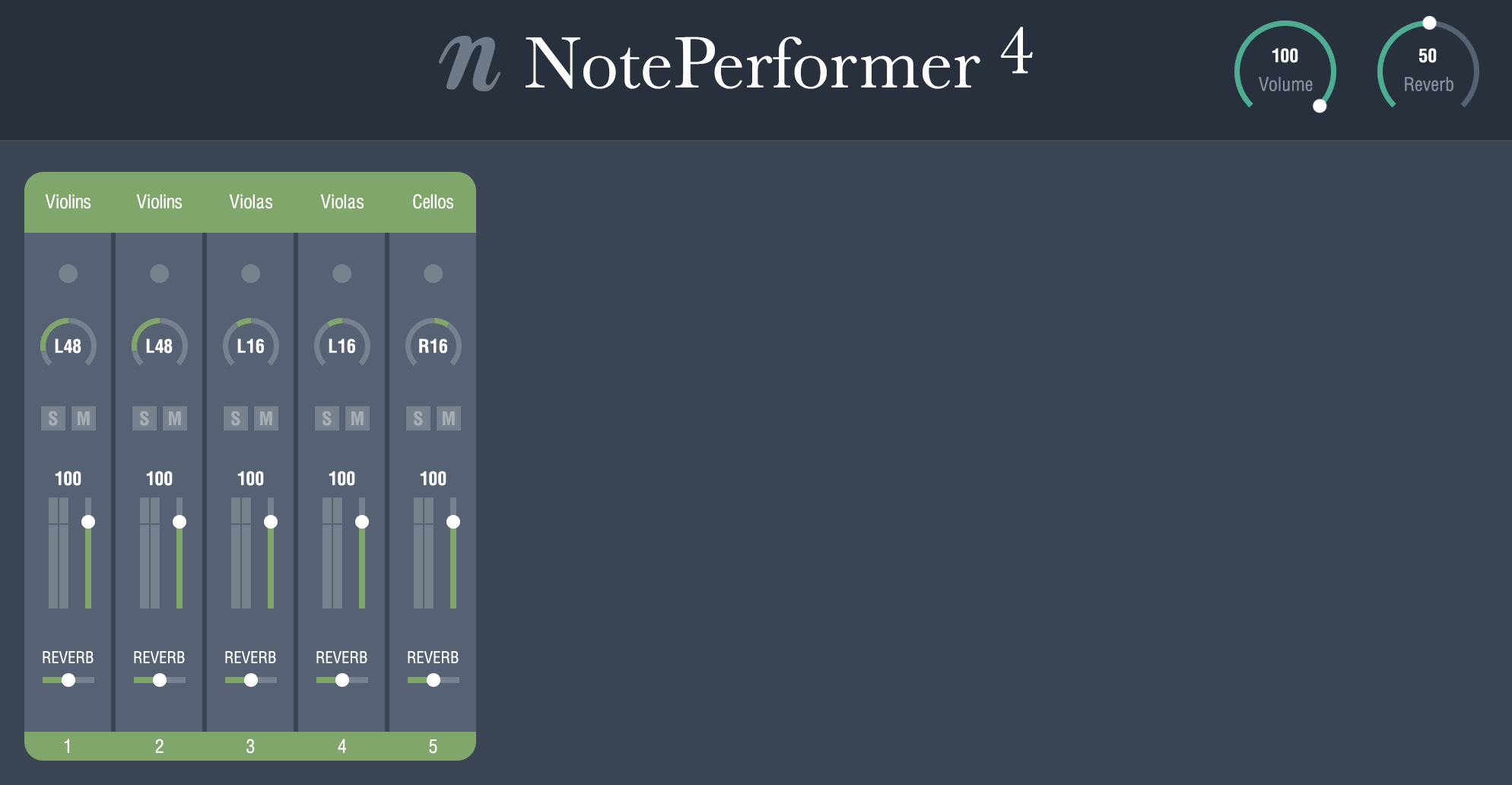

Here’s one. The instruments that are loaded, the panning, volumes and reverb are all saved state data of the VST.

I know it would be lovely to be able to load the audio of multiple projects independently; but I suspect that’s not without a cost too.

Anyway, hopefully, you’re back on track.

2 Likes

I wonder how Sibelius avoids this problem then?

As for losing hours of work, yeah that’s what I thought as well, and I have Dorico set to auto-save every 5 minutes. But twice yesterday, it apparently failed to save on schedule, or was unable to retrieve the saved project. The first time the hang occurred at about 1100, and the modification time on the project file was still 0934. No auto-recovered project was presented on next launch, either. The second time it hadn’t saved the project file but brought up a partial recovery, a version from about a half hour before the crash. The only difference I can think of is that the first time I rebooted the machine to get rid of the running audio engine, while the second time I was able to find and kill the audio engine process without rebooting the machine.

They avoid it by having not very good support for audio plug-ins. You can’t use any VST3, for starters.
