I’ve been running into numerous issues with my rig and I am looking for someone who is knowledgeable and trustworthy who I can hire. My rig likely has a hardware issue in addition to DPC latency problems, but I’d like to give it a thorough diagnosis using xperf, or other diagnostic methods. This issue could reoccur on a new rig, so I would like to make friends with a technician in case I need help in the future. A few of the issues listed below:
-BIOS sees 60GB RAM and not 64GB (8x8GB sticks, and on my second set of corsair ram after the first set had a memtest error)
-One USB 3.0 port works, but the other one does not. There are a few other ports directly on the back of the motherboard that don’t appear to be working. For instance, if I plug in an external 2.5 SSD, or other device, it appears to send power to the device but the device driver does not install.
-Some USB ports are not working or losing power at times.
-Drives are slow to populate in windows explorer
-EFI boot partition is on the wrong drive. Somehow my system will not boot without 2 drives plugged in, one with the OS and the other with an EFI partition.

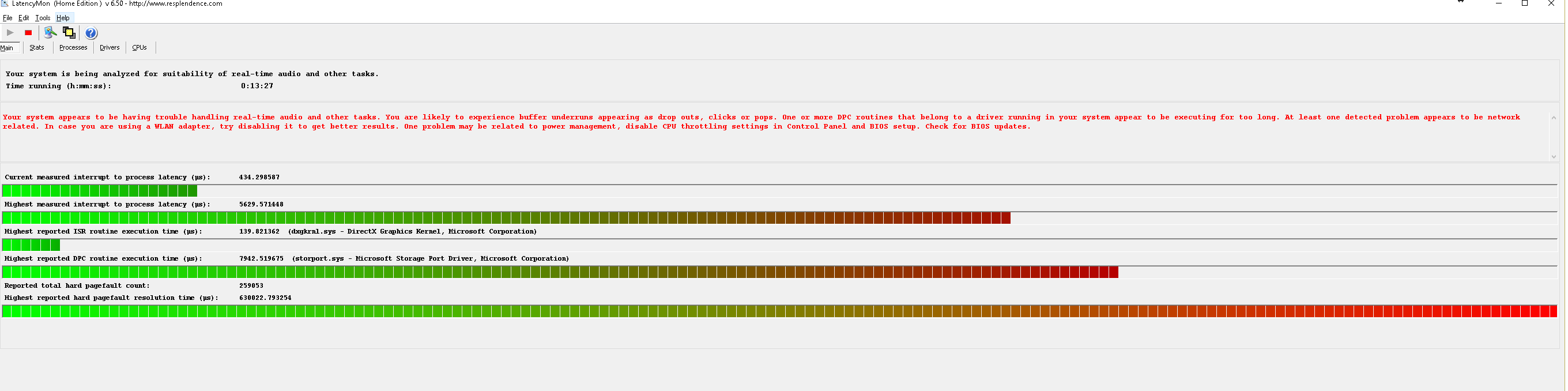

-DPC latency spikes on latencymon. Hardpagefaults is always maxed out. suspect drivers are usually storport.sys, nvidia drivers. Storport got up to 8ms max execution time.
-Device manager will take forever to display, and often will crash without warning, or with “Microsoft Management Console has stopped working.”
Faulting Application Path: C:\Windows\System32\mmc.exe
Problem Event Name: APPCRASH
Application Name: mmc.exe
Application Version: 10.0.10586.589
Application Timestamp: 57cf96ca
Fault Module Name: devmgr.dll
Fault Module Version: 10.0.10586.0
Fault Module Timestamp: 5632d68b
Exception Code: c00000fd
Exception Offset: 000000000000bf26
OS Version: 10.0.105184.108.40.206.256.48
Locale ID: 1033
Additional Information 1: ea5b
Additional Information 2: ea5b130a0d808705803ddba8a2f0a7d5
Additional Information 3: c9d1
Additional Information 4: c9d1022fcacc2155de88ce33482dcef0
Extra information about the problem
Bucket ID: b0b8414eef82e3ffd197ccf3220aae08 (120550240599)
Here’s my specs. I have the latest BIOS and driver updates, to my knowledge.
Core i7 3930k
ASUS P9X79 PRO
Corsair XMS3 64GB (8x8GB)
Nvidia GT 640
RME HDSPe AIO
