I’d like to know if there’s a way to create a template similar to this page in Dorico. Attached sample
Future Sample.pdf (89.7 KB)
Yes, something like this. I use a coda (hidden) to separate the exercises on each staff, and then, each staff is a new flow with Library->Layout Options->Page Setup->Flows set to allow on existing page. You can use Duplicate Flow once you have created the first one.
Jesper
Drum ex.dorico (551.8 KB)
3 Likes
Thank you, Jesper! Since I’m new to Dorico, how do you create the coda (hidden) you mentioned? What I meant is that I need the whole process to arrive to your solution!
Create the first 4 bars with drums. Select the first note on the 3:rd bar

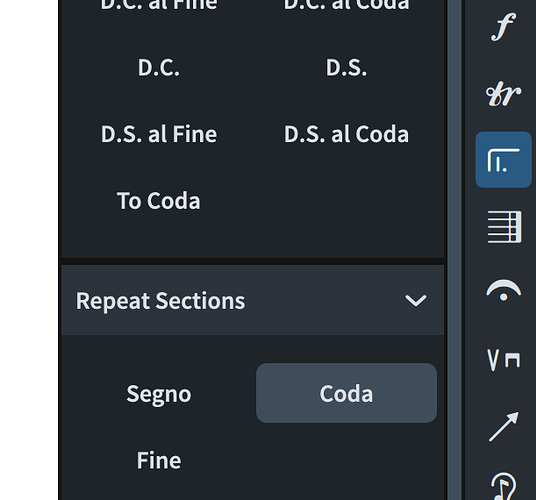

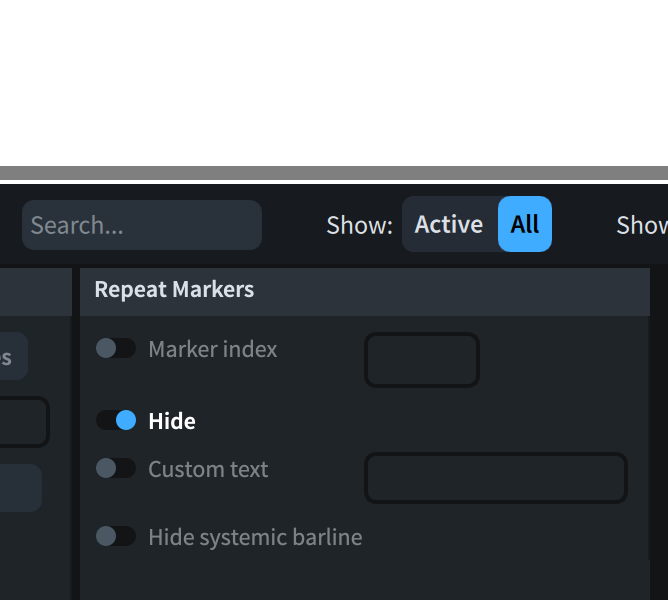

and create a coda (pict1), then hide it in the lower (properties) panel (pict2)

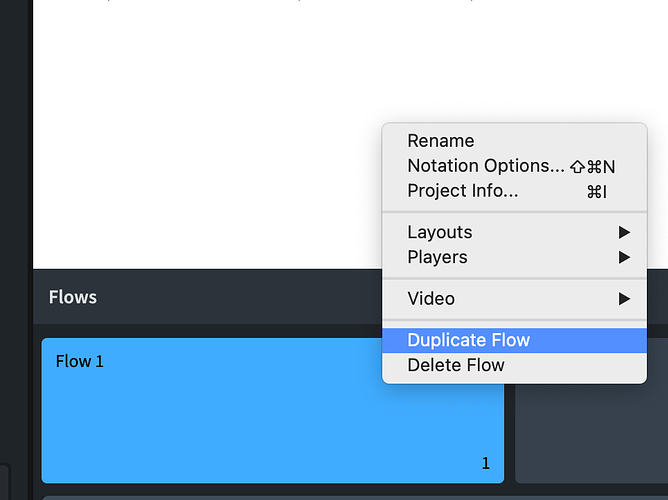

Then on the 5th bar select the rest and do shift-B write trim in the popover and press enter to remove everything after the first 4 bars. Then in Setup mode, right click the flow and select Duplicate Flow (pict3). Finally, in Library->Layout Options->Page Setup->Flows select Allow on existing page. (pict4)
(Duplicate flow as many times you need)
Jesper
Wonderful! Thanks a lot, Jesper!

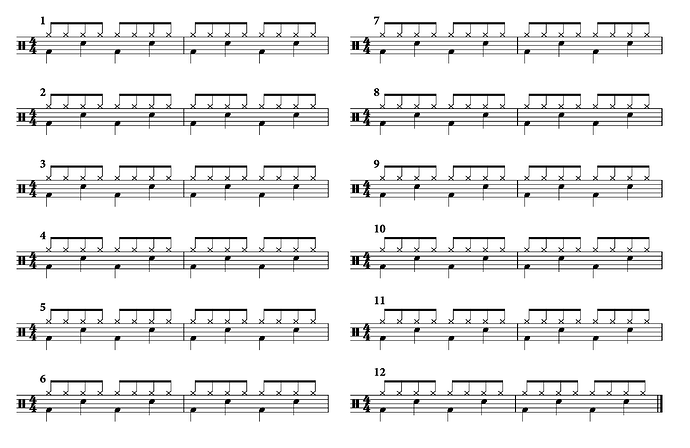

Here’s another way to do it with just one flow and 2 music frames on each page.
Jesper
Drum ex2.dorico (615.5 KB)
Great! How did you achieve that split page?

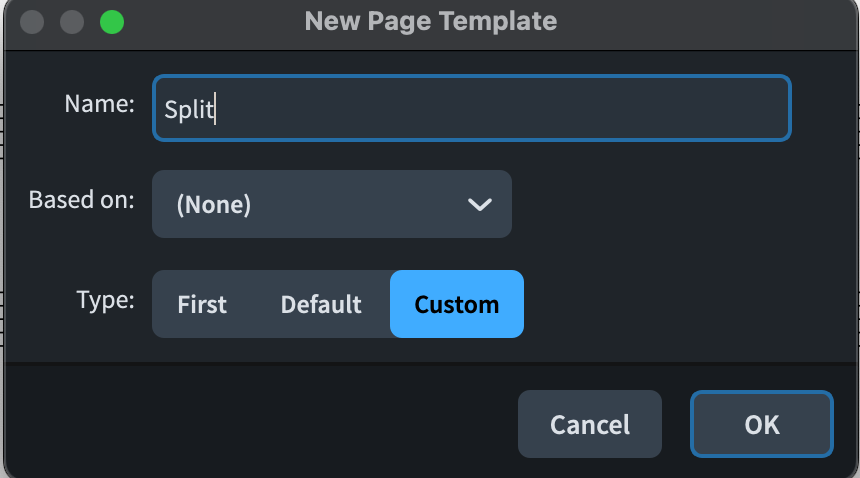

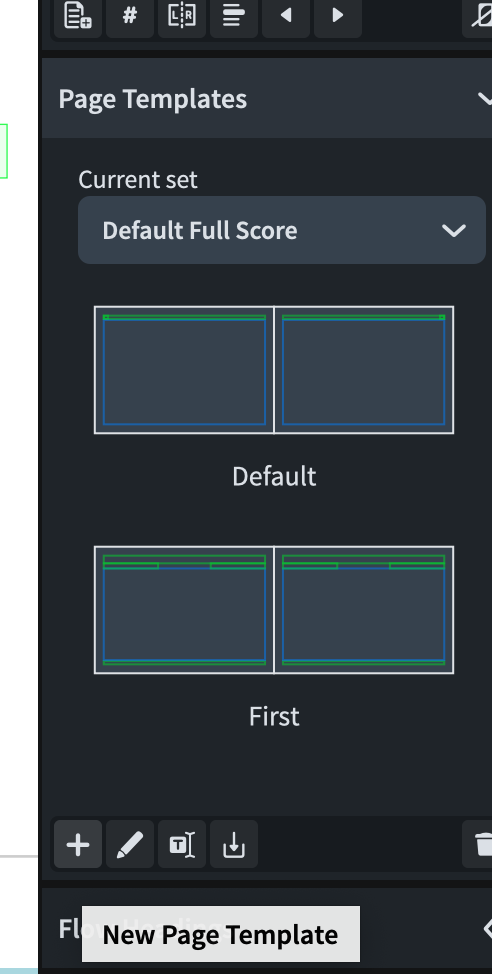

In Engrave mode, create a custom page template based on none.
Double click it. Select the Insert music frame and draw 2 frames into the page.

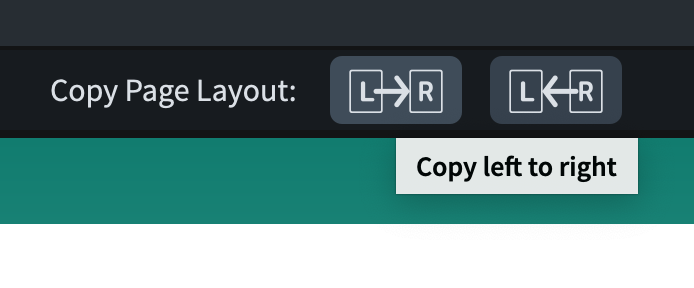

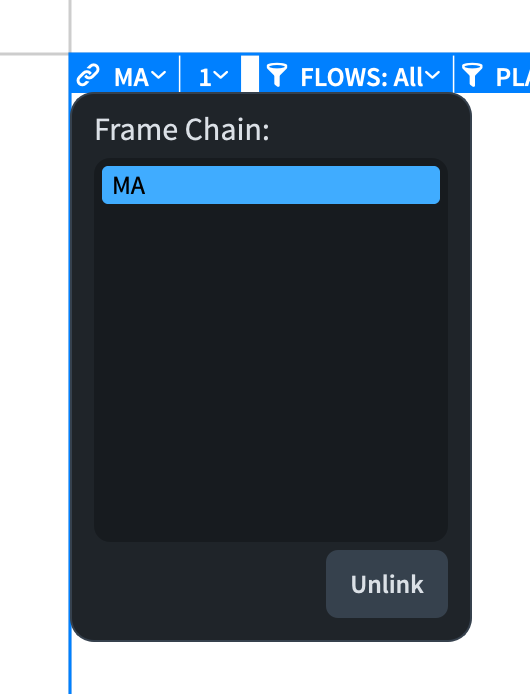

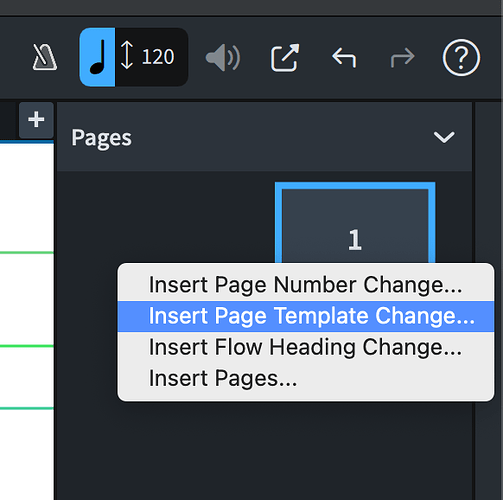

Make sure they both use the MA frame chain. Copy Page Layout to the right page. Apply and close. Insert a Page template change.
Jesper
2 Likes
Absolutely stellar! thanks a lot!
