Help for midi remote control

Hello
Could someone please tell me why I have to press a button twice to trigger the function?

I use the Sherlock 14-bit MIDI plugin, which works very well with the generic device with Cubase 14 pro.

Knowing that this function will eventually disappear, I am trying to do some tests to configure a first page in the new midi remote but in Cubase 13 Pro so as not to modify my setup.

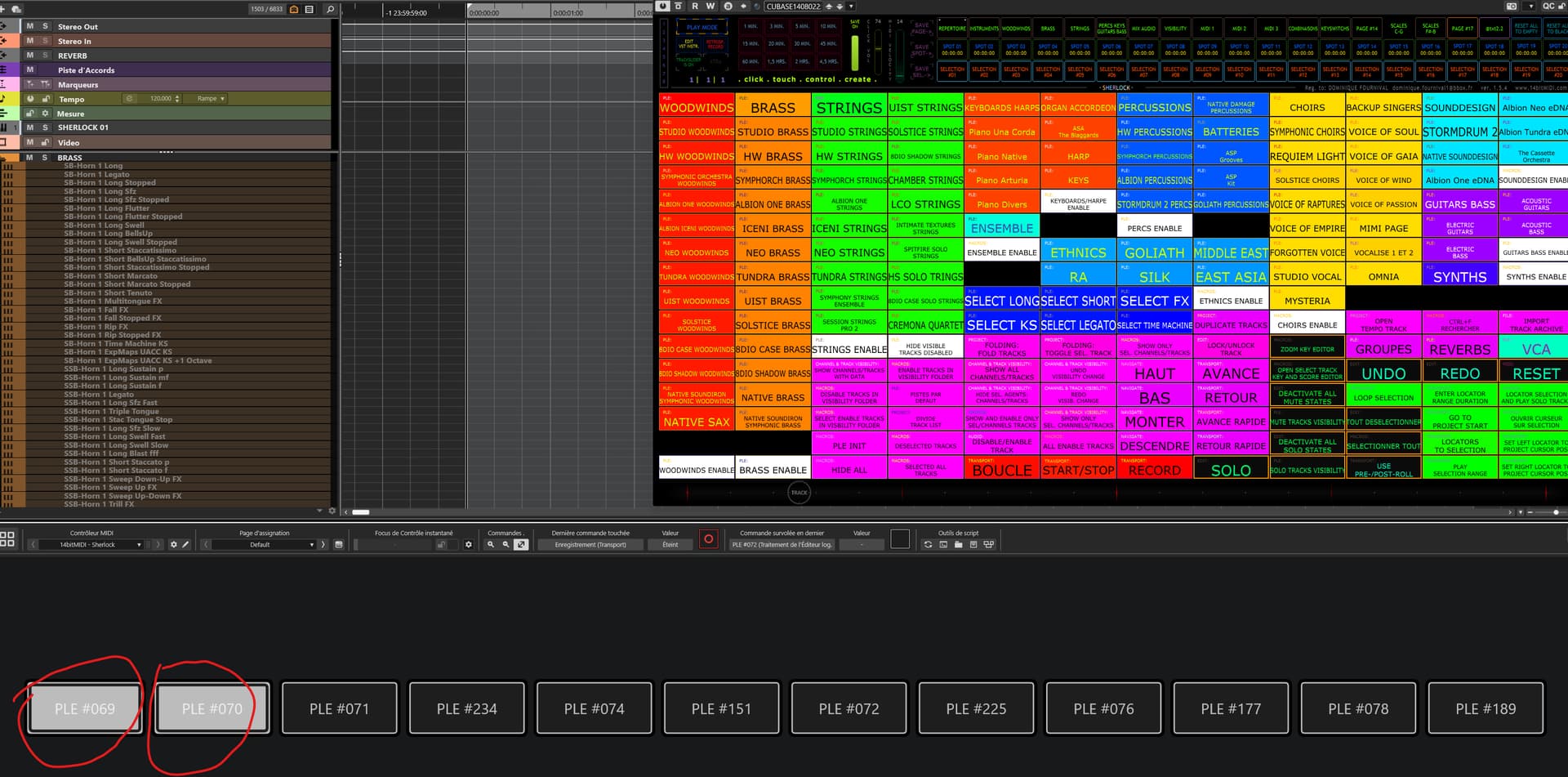

example if I click on Woodwinds the tracks appear if I click on Brass the same tracks remain visible if I click a second time the Brass appear

PLE #069 correspond Woodwinds PLE #070 correspond Brass

What is strange is that some buttons react to the first trigger while others only react to the second

Sherlock reacts to Control Change with 14-bit NRPN resolution.

the midi cc correspond well to those which are in the generic remote

Where I have a doubt is the function transmit to the material to be checked or not?

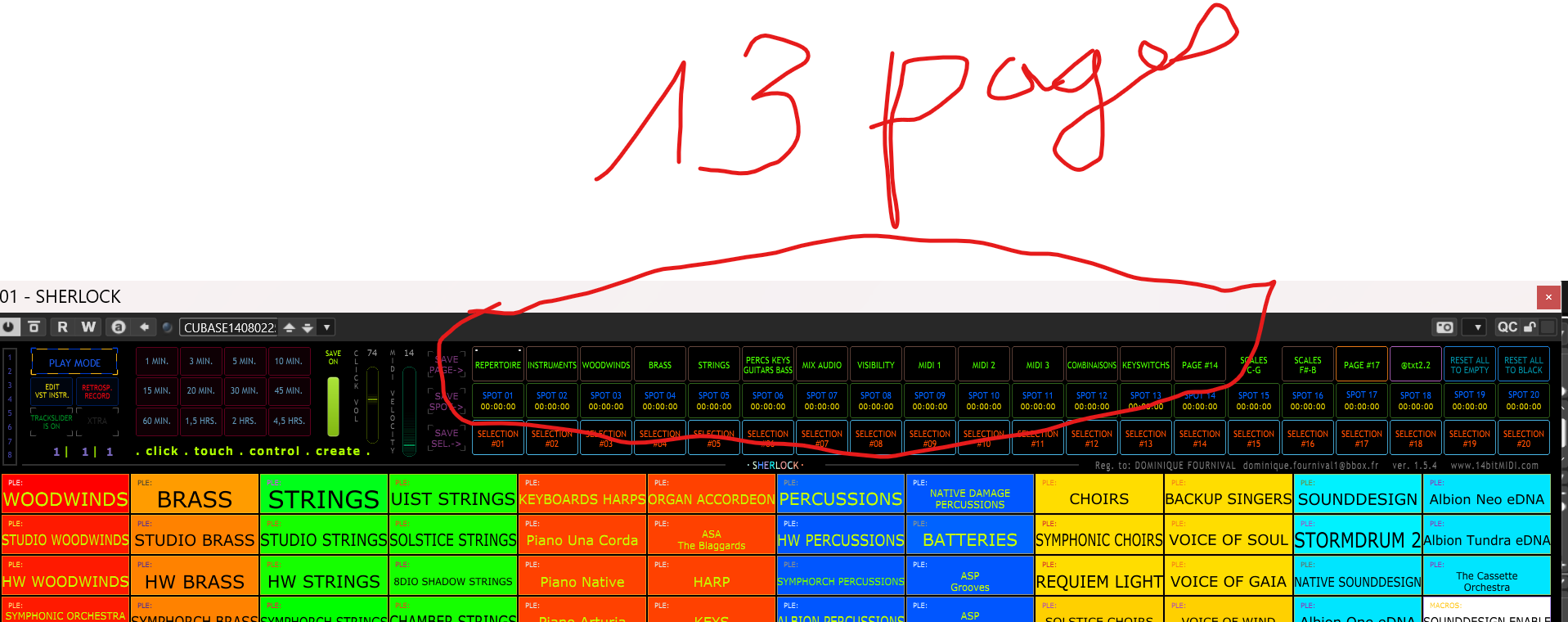

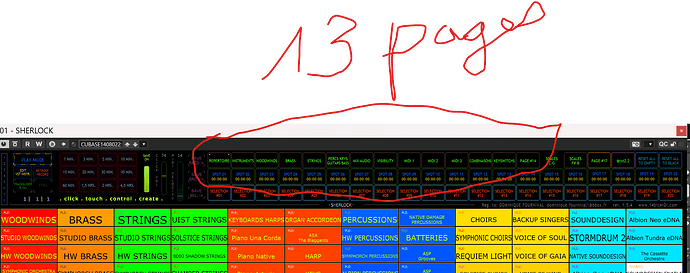

and once I have resolved all that, tackle the change of pages because there are 18 of them, 13 of which are already operational with 196 buttons

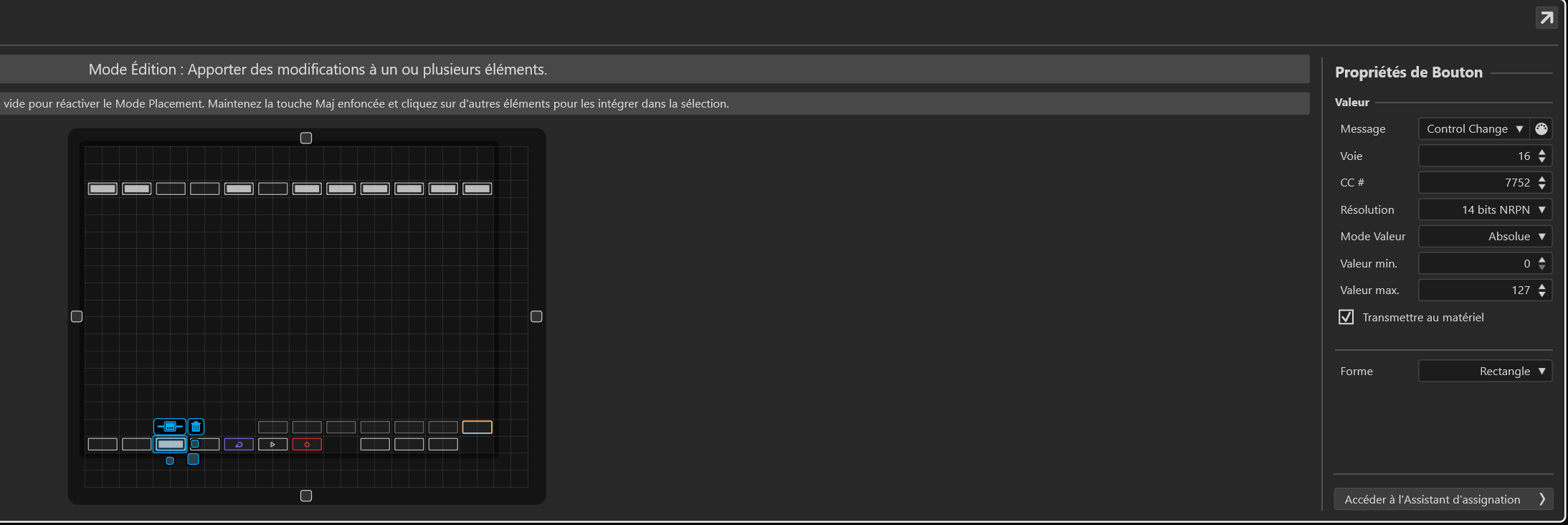

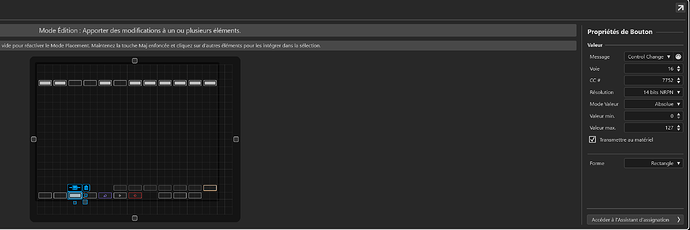

Could you please post a screenshot of one of your commands (PLEs) assignments in the mapping assistant? Something like this:

No problem

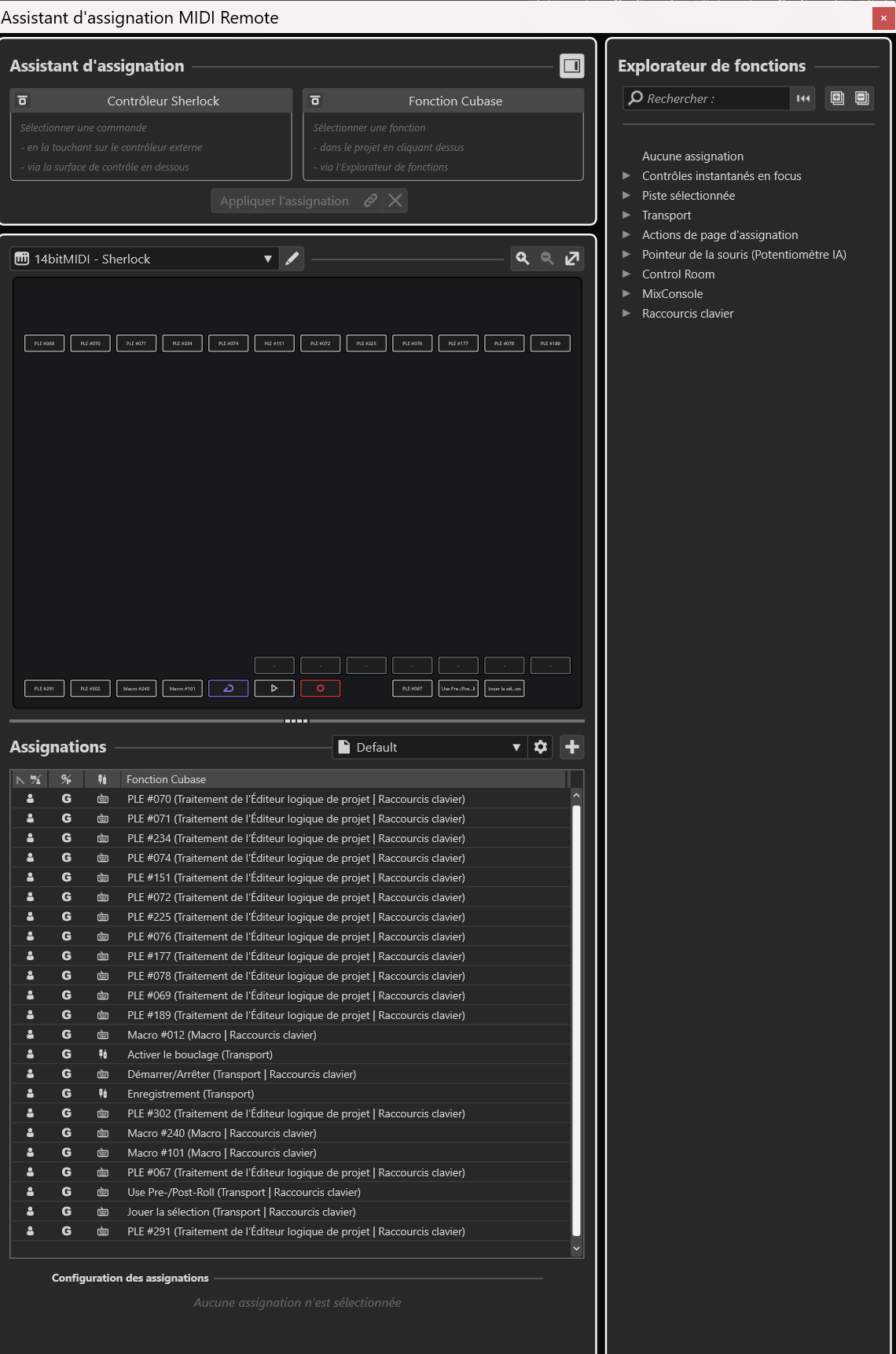

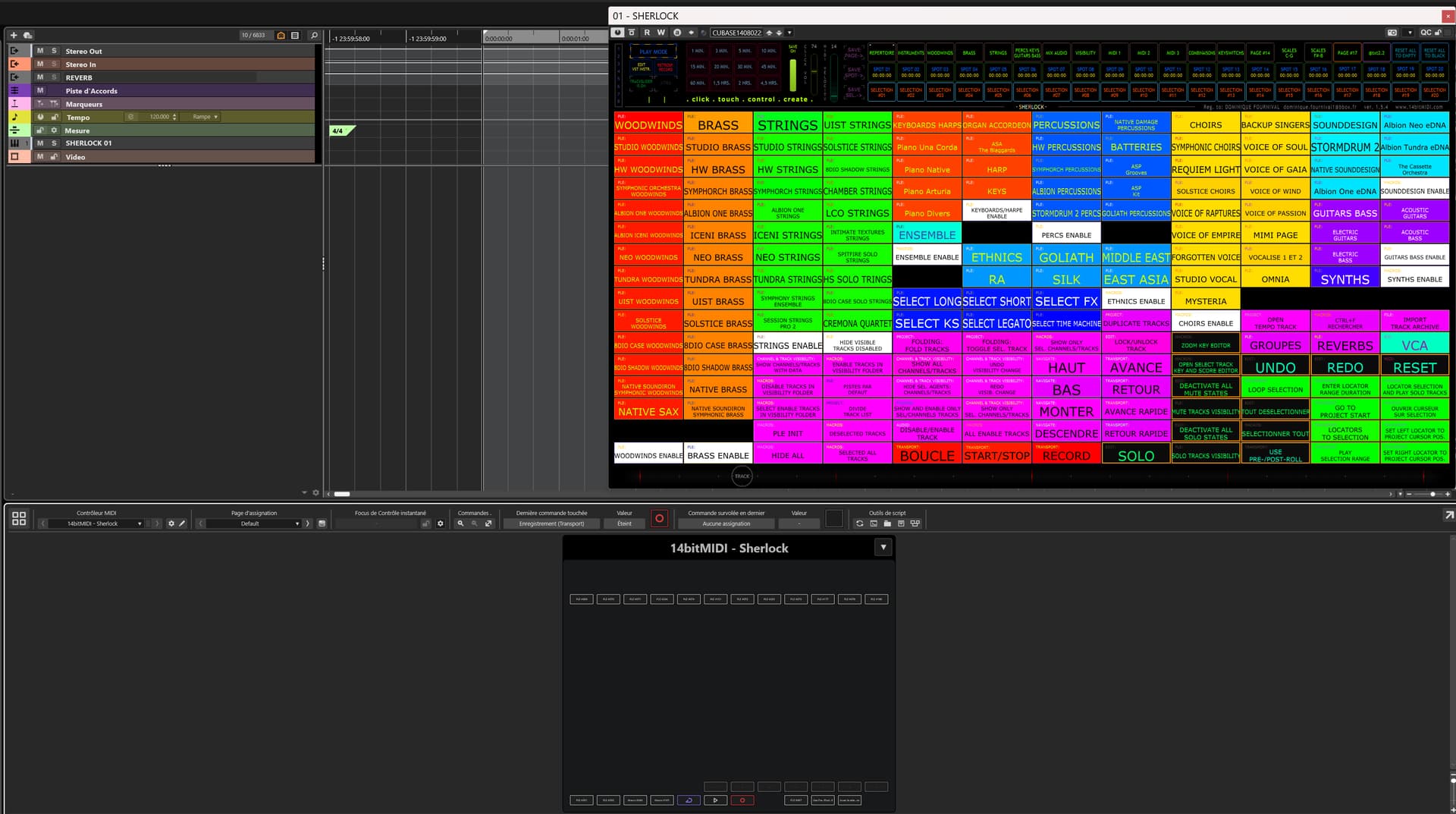

Here are the functions I need to create for my first page

and I would like to point out that all this works very well and is very responsive with the generic remote

Seeing your screenshots, I see no reason for the bindings to fail. After all they’re just command bindings (even PLEs), I don’t recall the MR having issues with command execution.
Do you have the generic remote active at the same time, using the same MIDI Ports? Maybe it’s a message consuming issue.

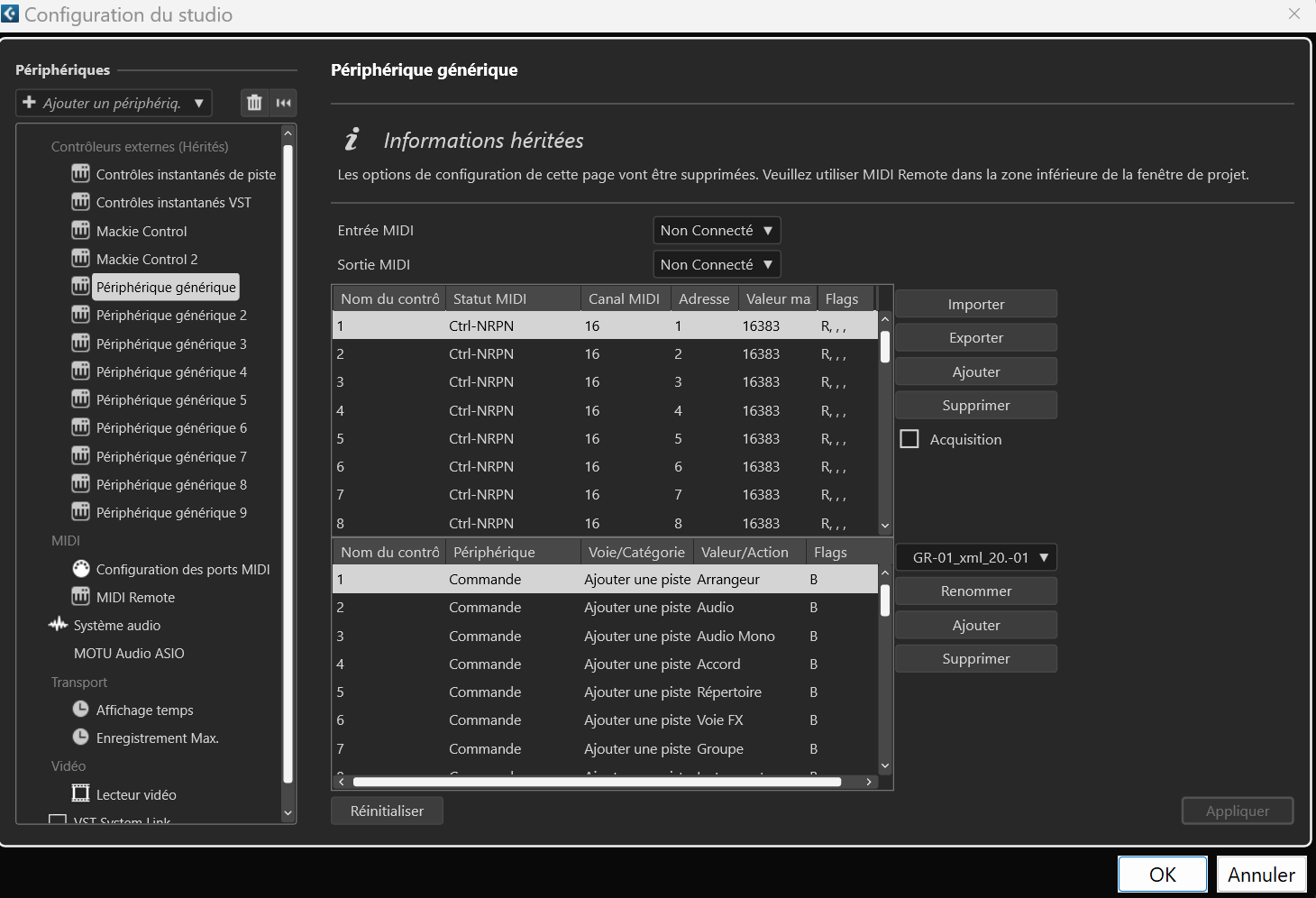

then all generic peripherals are disconnected

and here is the configuration of the midi ports

However, I have a doubt about the Mackie Control.

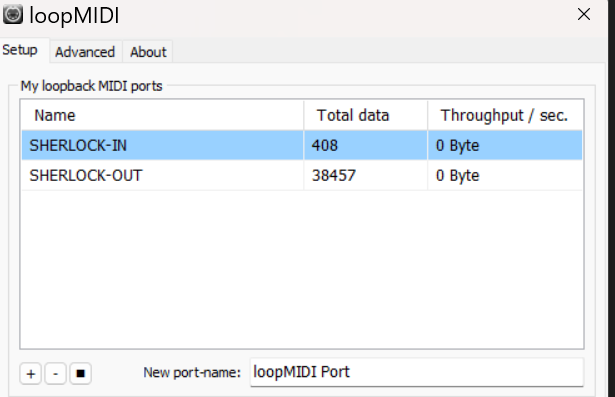

I specify that I use the LoopMIDI virtual port

What happens if you temporarily remove its ports? Does it make any difference to your midi remote execution?

I just tested it, it doesn’t change anything.

Can being on version 13.0.55 rather than version 14.0.32 change anything?
Has the MIDI remote evolved?

Okay, I won’t bother you any longer.
I’ll think about it and try it again.

Good evening

Without knowing much about the mapping assistant, the first thing that comes to mind is that your button is of a latching type where you would rather have a momentary type.

No worries.

Issues with NRPN were fixed by that time if I recall correctly.

Correct. When executing commands, the CC has to send something above zero, so if your device is set into toggle (I mean at the device side), indeed this could cause the issue.

Thanks to both of you, but I should point out that Sherlock is a plugin I use on a 24" touchscreen.
In this case, is it possible to switch between toggle and momentary mode?

Do I need to change anything in the button properties?
Value mode: invert minimum and maximum values.

Or do you need a script like for page changes?

The things you want to do don’t seem to need scripting.

When you press a button on your controller (from what you say it’s just a button element in the UI of Sherlock), what are the values of the midi message sent? Could you monitor them from inside Cubase and its midi monitor?

I’m not home right now.

I’ll check it out tonight but I think I’ll have to reactivate the generic remote

because I already tried yesterday to activate the midi monitor on Sherlock but with the new midi remote nothing happens
