How do I fix inconsistent layout?

Dorico
,
1

So I imported an MusicXML with import system and Frame beaks off. Space Size is Size 6 (5.5 MM)

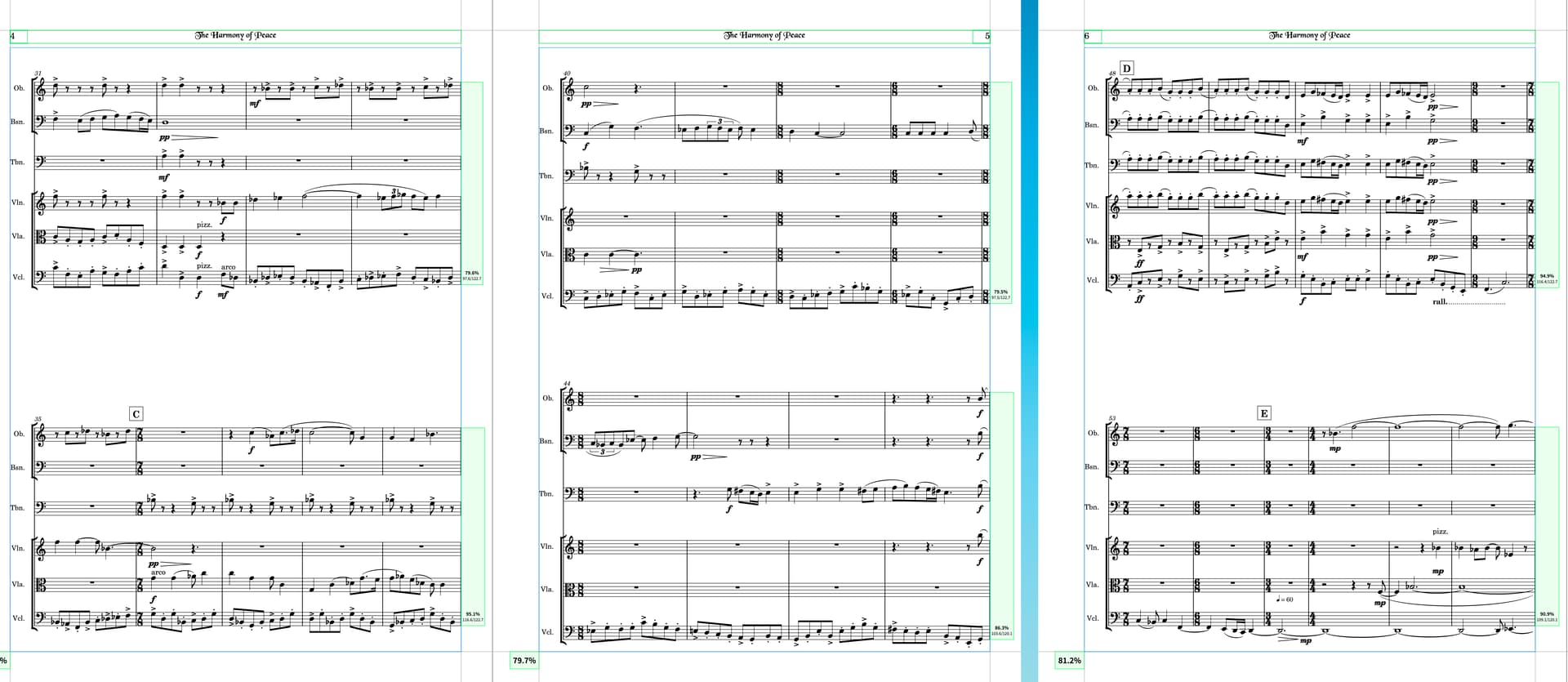

The first couple of pages look like nice:

nice-spacing
nice-spacing1920×2489 282 KB

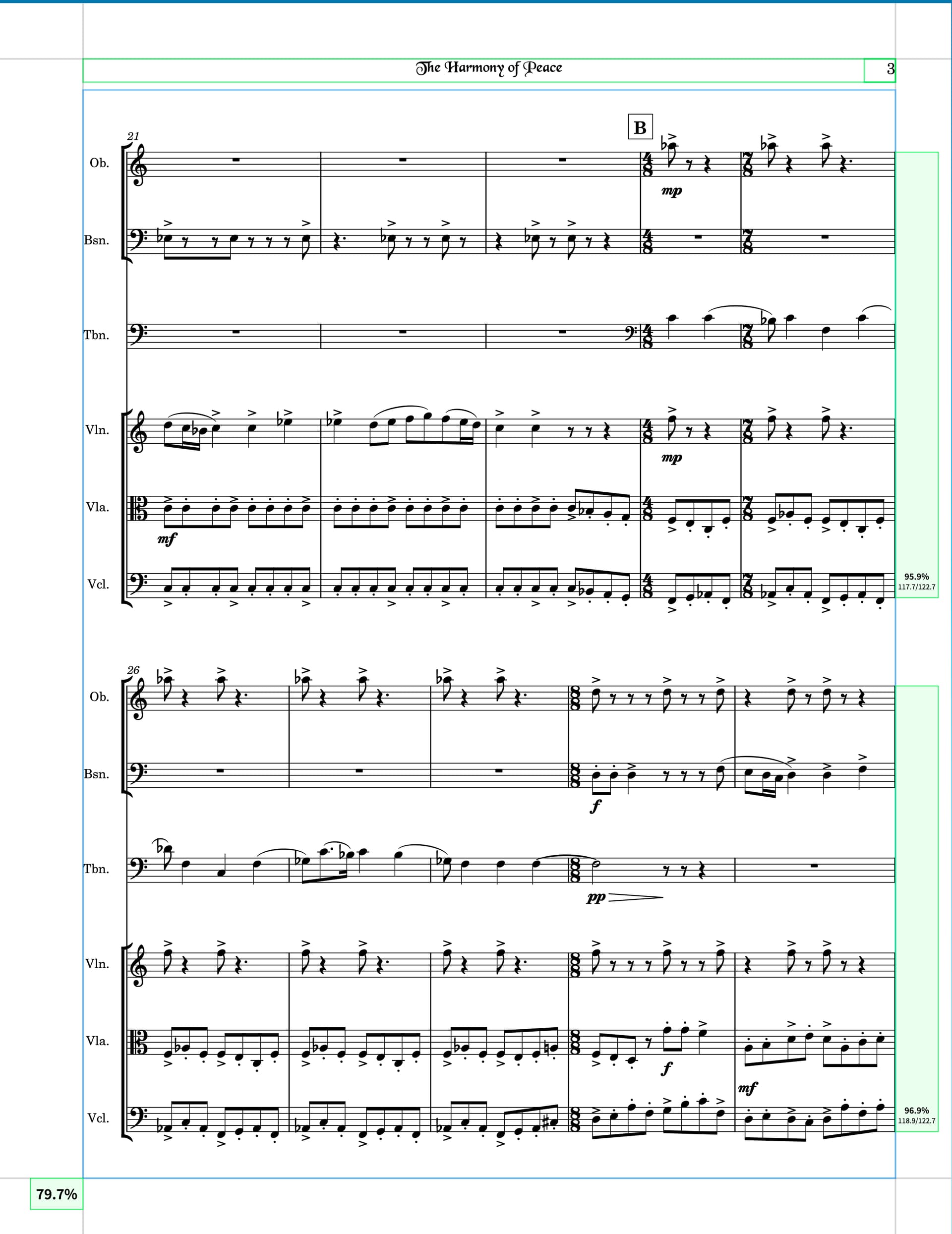

Then it becomes more cramped and pages don’t really match the way it started:

cramped
cramped1920×835 164 KB

How do I fix this so the layout it has a consistent look to it?

Thanks

2

I would recommend experimenting with Layout Options Vertical Spacing and Vertical Justification settings. Pages 4 and 6 are over 80% full, so in accordance with the default justification settings, they are justifying only the distance between systems, and not the distances between staves. You can change this to a higher value like 90%, and you might like the results.

I often find that for scores of smaller ensembles like this, I like the results if I set the threshold for vertical justification of systems only to 100% (essentially so that the distance between staves will always be justified), and then experiment with a larger value for my inter-system gap (in ideal gaps) like 14-18 spaces.

5 Likes
3

Thanks for the tip I’ll give that a try.

4

OK that did the trick I have a constant layout now, thanks!
