Is it possible to use multiple outputs of my UR24C in Windows?

Steinberg Hardware UR-C Series
1

Hi

My UR24C has 2 pairs of outputs, but Windows does not give me any option as to which to use - I just can either select UR24C as my output, or something else.

I’d like to be able to switch between what’s connected to the different outputs - is that not possible?

Thanks in advance.

2

You have to use the ASIO driver for the device to access them

3

Thanks Steve for the suggestion but it looks like this is already the case:

There is no option that I can see to switch between different outputs:

image1099×867 43.6 KB

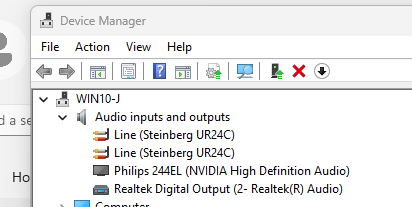

In device manager both pairs seem to be “available/working”:

4

Have you downloaded the latest version of TOOLS for UR-C? UR-C Updates and Downloads | Steinberg

The latest v3 upgrade adds support for additional outputs with the new multi-stream driver.

The screenshots indicate that you’re not running the latest version

5

Thanks @DanielAyo
I have done that and can see multiple outputs now in Windows but no matter which one I choose the signal still goes to the main out.

Confusingly those output devices are called voice, line and DAW. I was expecting something like Master/Line 1/Line 2.
To me “Voice” is something that goes into an input, and DAW is an application.

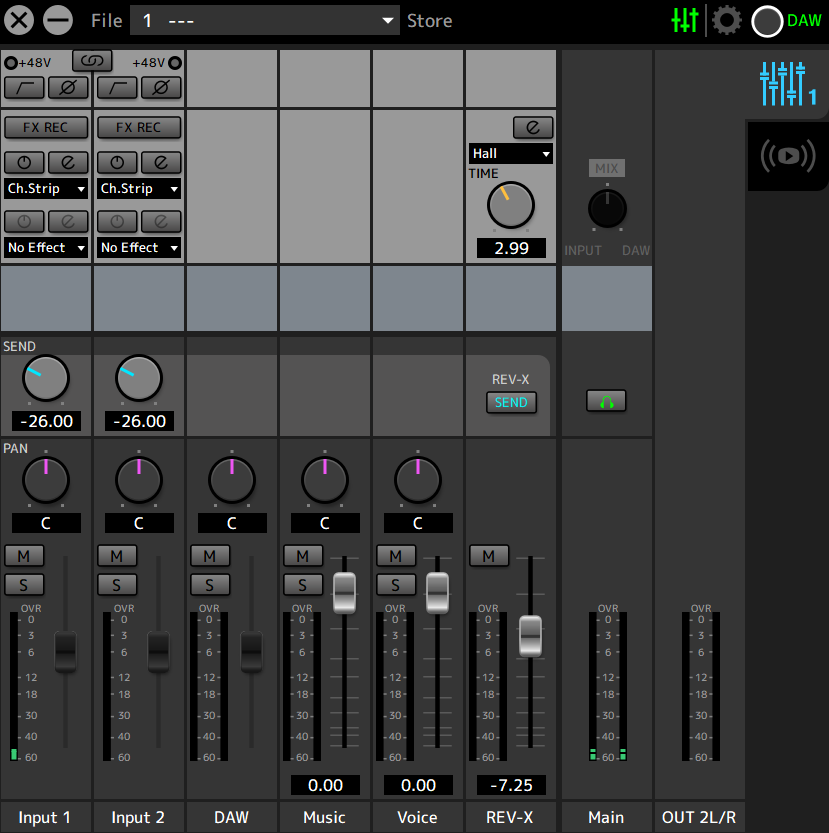

There also doesn’t seem to be any way of getting audio to Out 2 in the dspfx application

image829×833 42.7 KB

I tried toggling the monitor mode from DAW to DJ but it didn’t seem to make much difference. I also tried playing with the controls on the front of the device but that didn’t make any difference either.

I will re-read the manual, to see if I can make any sense of this.
