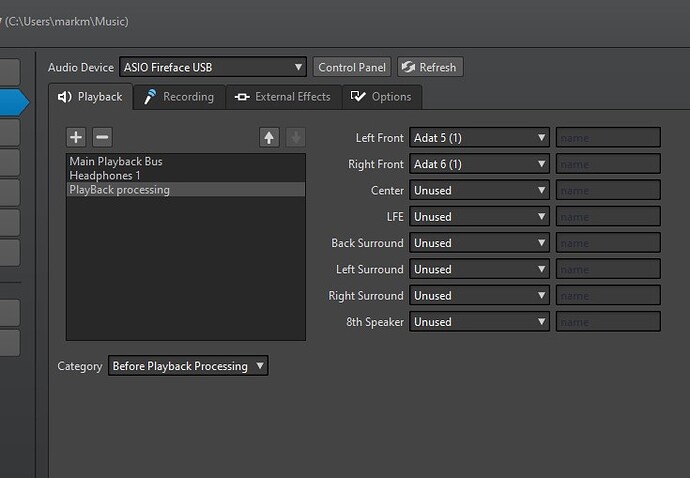

I’m struggling to get playback processing to work. I’ve added Frequency EQ so I can do speaker correction. It looks fine and I only have my main speakers connected but the effect is not happening on my speakers. If I look at the effect I can see it sees the input. What could I possibly be doing wrong. Wavelab 10.0.70. I set this up easily in control room in Cubase. Even If I use the Before Playback processing and select a different output and enable it the eq is still not applied on the outputs I choose.
ISnt your mastersection disabled? I see it in red
I don’t think Playback Processing works the same in WaveLab as it does in Cubase, but it’s a common request.
Unless there is a trick I don’t know about, the Playback Processing slots in the Master Section are only for the Main Playback Bus. You don’t need to add them as a separate output in the Audio Connections area.
And as Pedro mentioned, the Master Section looks bypassed.
The master section is bypassed but that wasnt the point. It’s only disabled because I had just rendered. I should have taken the shot before I rendered. That makes no difference to what I’m asking.
I thought the playback processing was independent of the master section so you could in theory put room/speaker correction on the playback processing without it impacting what you render but only what you hear. As far as I see it does nothing. Shame as it looked a good place to put it.
I would put room correction on my rme eq but it’s only 3 band.
Thanks for the answers but does anyone know any different. Please ignore the master section as that is not what I am referring to.
1 Like
The Playback Processing slots are somewhere you can put room/speaker/headphone correction but it requires no extra steps in the Audio Connections area.

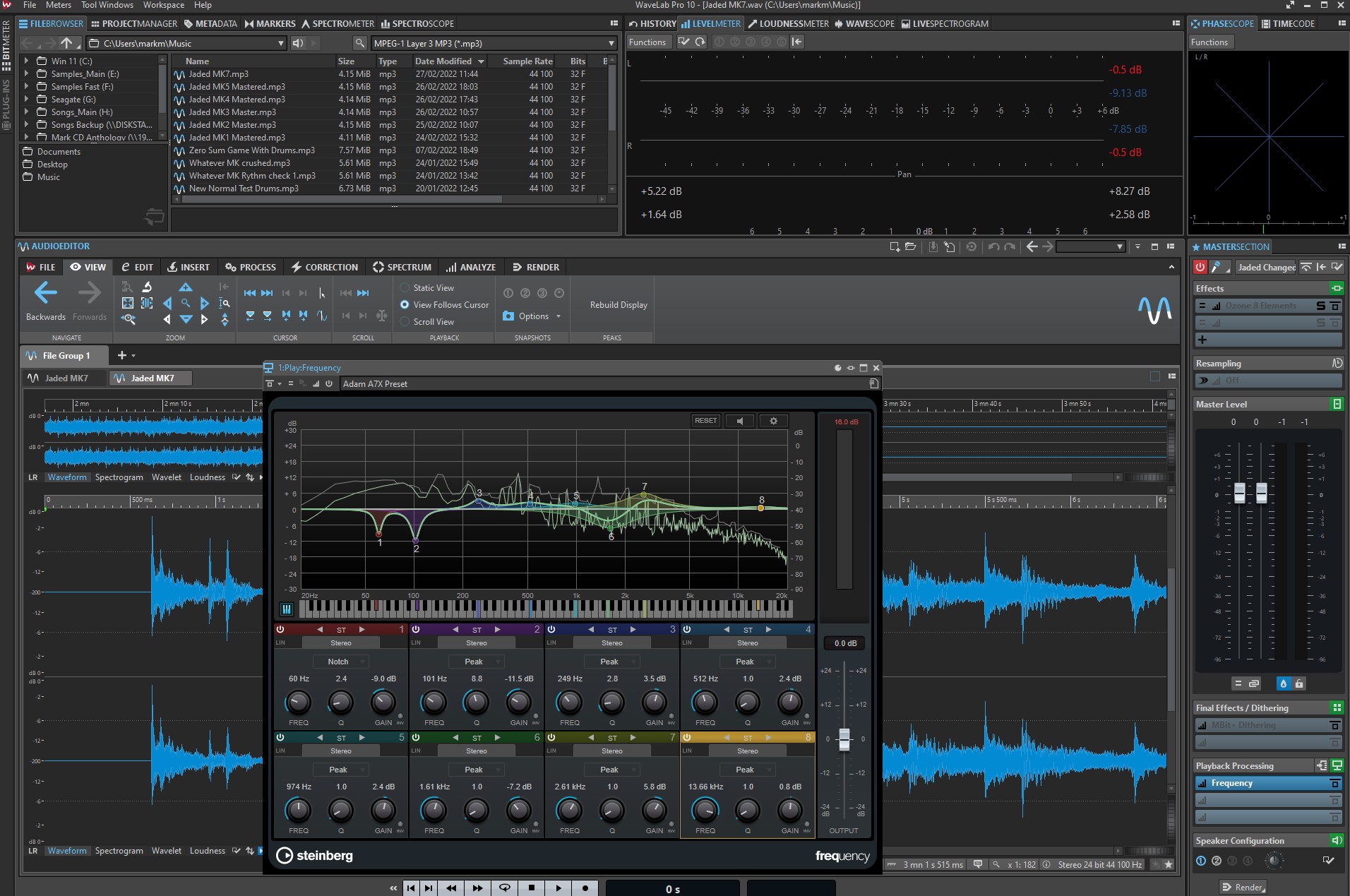

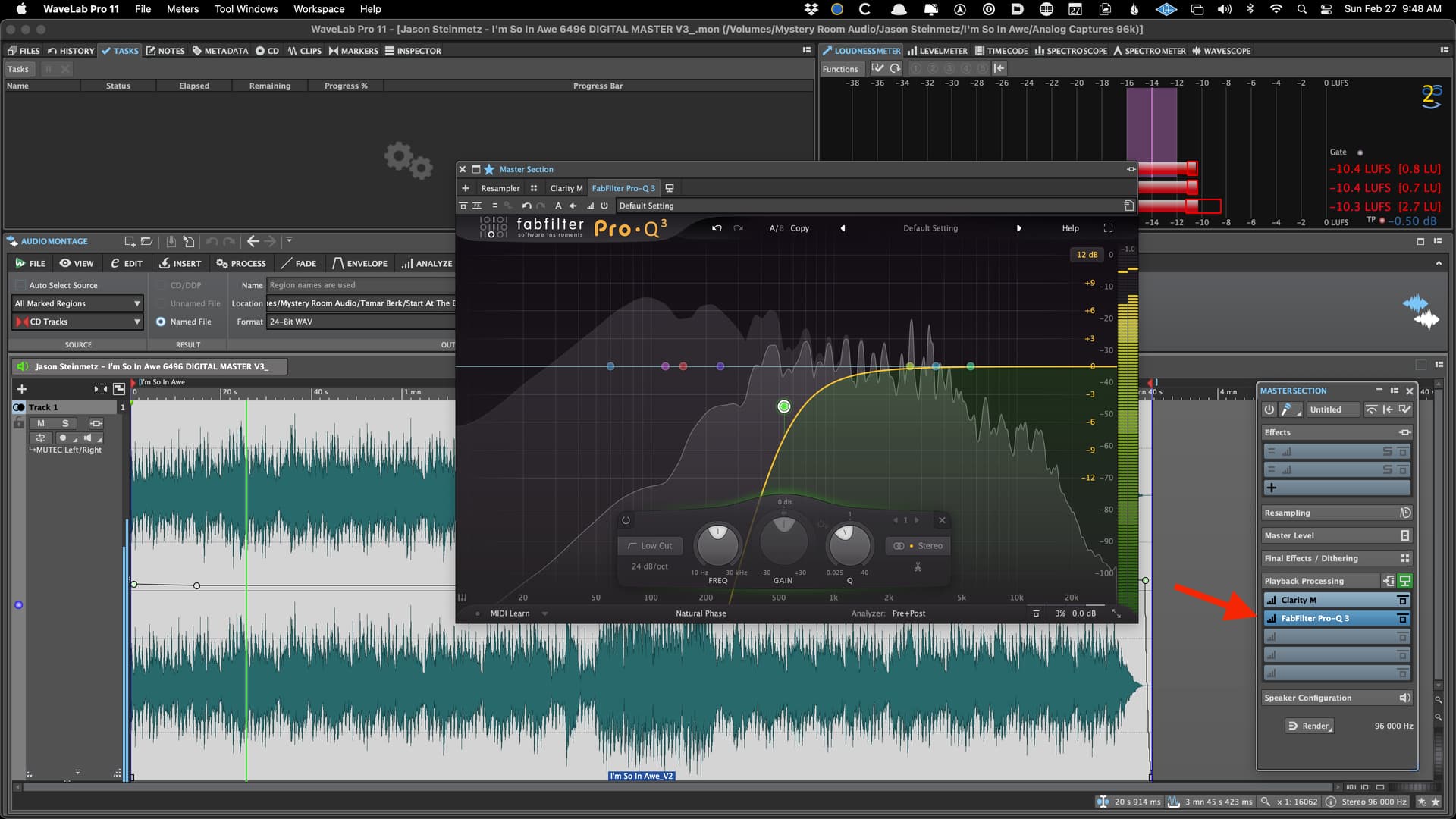

In the scenario you see here, I am hearing the effects of the FabFilter EQ on the main stereo output of WaveLab, but the FabFilter EQ is not part of the audio rendering path, and doesn’t influence the internal metering of WaveLab.
If you’re trying to EQ/correct different outputs with different EQ/correction, that is what I don’t think is possible right now in WaveLab, but seems to be an option in Cubase.
For example, I don’t think you can EQ/correct output 1-2 differently than output 3-4, or 5-6.
I’ve seen a number of requests for an EQ slot for each of the Speaker Configuration options but right now, the Playback Processing slots happen before and separately from any of that.
1 Like
Ok so that is what I tried first but it didn’t work. I had a single output configured and on the eq I could see an input to it but it did not translate to the output I was hearing. I did radical eq so it would be obvious but nothing. I’ll have another go when I get home as it’s obviously working for you (what version of Wavelab are you on?) My original attempt and from how I read the manual suggest it should work how yours looks.
Strange
Hmm so the pre-set I was using didn’t work even though it looked like it should. Everything was enabled and I went through each band making sure it was turned on and it was but when I actually touched the dot for each frequency on the graph part they suddenly started to work. So I touched them all and saved and now it works. I just can’t see why the pre-set I was using in Cubase did this but something was stuck with it.
Anyway thanks Justin for proving it does work as I thought which prompted me to have another go. I was sure I tried radical changes last time and nothing happened. Could be me I suppose lol.
Hmm, it’s hard to say what was going wrong but I’m glad you got it.
At first I thought you might be talking about what appears to be possible in Cubase, but I’m not a Cubase user so I can’t say for sure…but I thought you were trying to apply a dedicated EQ/correction to each of the Speaker Configuration outputs.
AFAIK in WaveLab, you can only apply one EQ/correction in the Playback Processing slots, and that feeds all the Speaker Configuration outputs.
Thanks. I brought in my headphone presets and had the same problem until I touched the dots in the eq. All enabled yet not working. Saved and now fine. I’ve saved two presets. One for headphones and one for speakers. The speaker one disables the headphone eq and vice versa. Seems to be all working correctly now. Seems Wavelab didn’t like the presets I made and brought in from Cubase.
1 Like
Even though Cubase and Wavelab are both Steinberg products they are separate products meant for different applications and even though one would think they should work together nicely they don’t. FWIW
Yeah but you would have thought a preset in exactly the same plugin in Cubase would be the same in Wavelab! I used frequency eq which is the same on both. Ah well we live and learn.
Hello everyone,

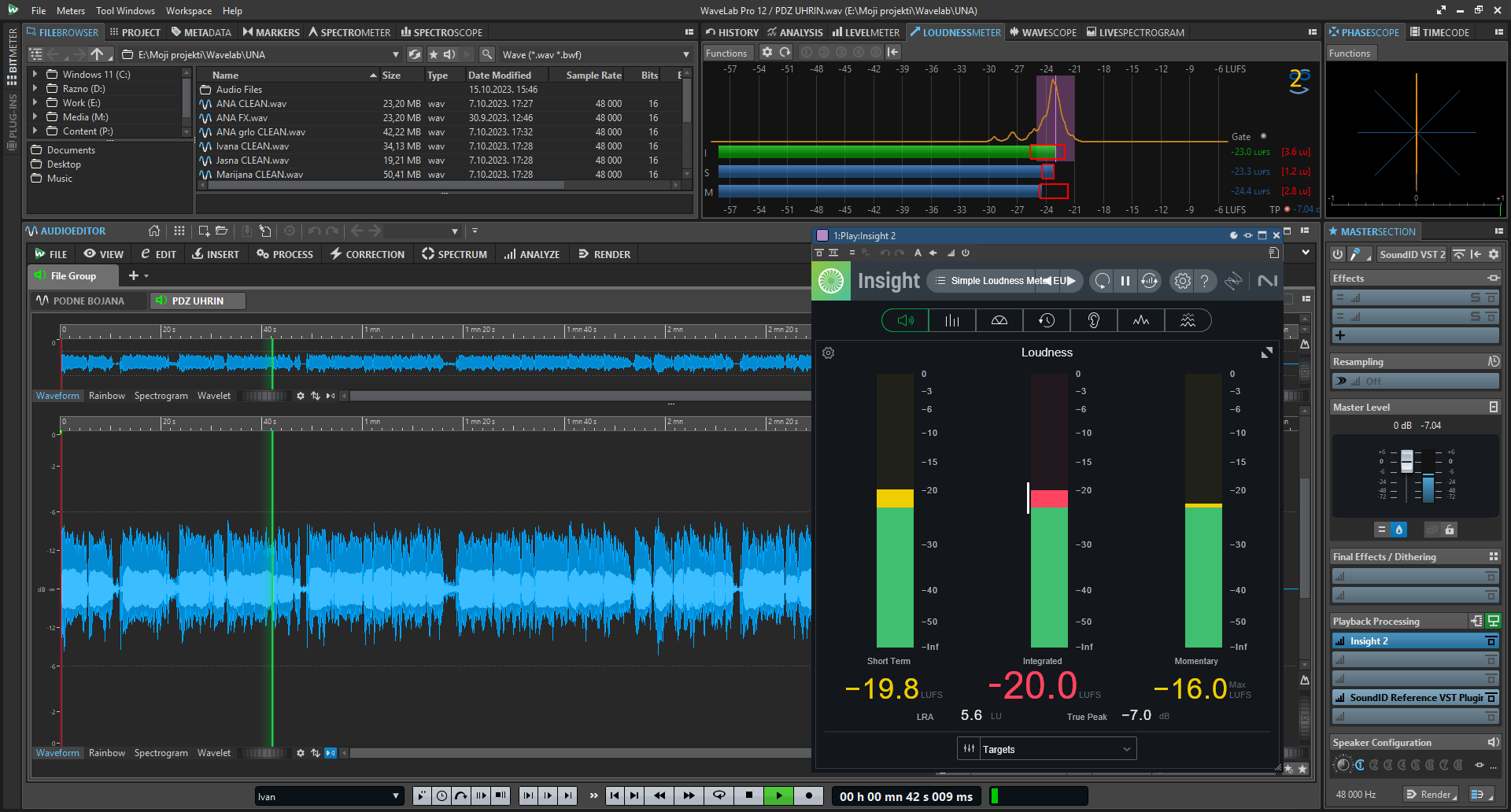

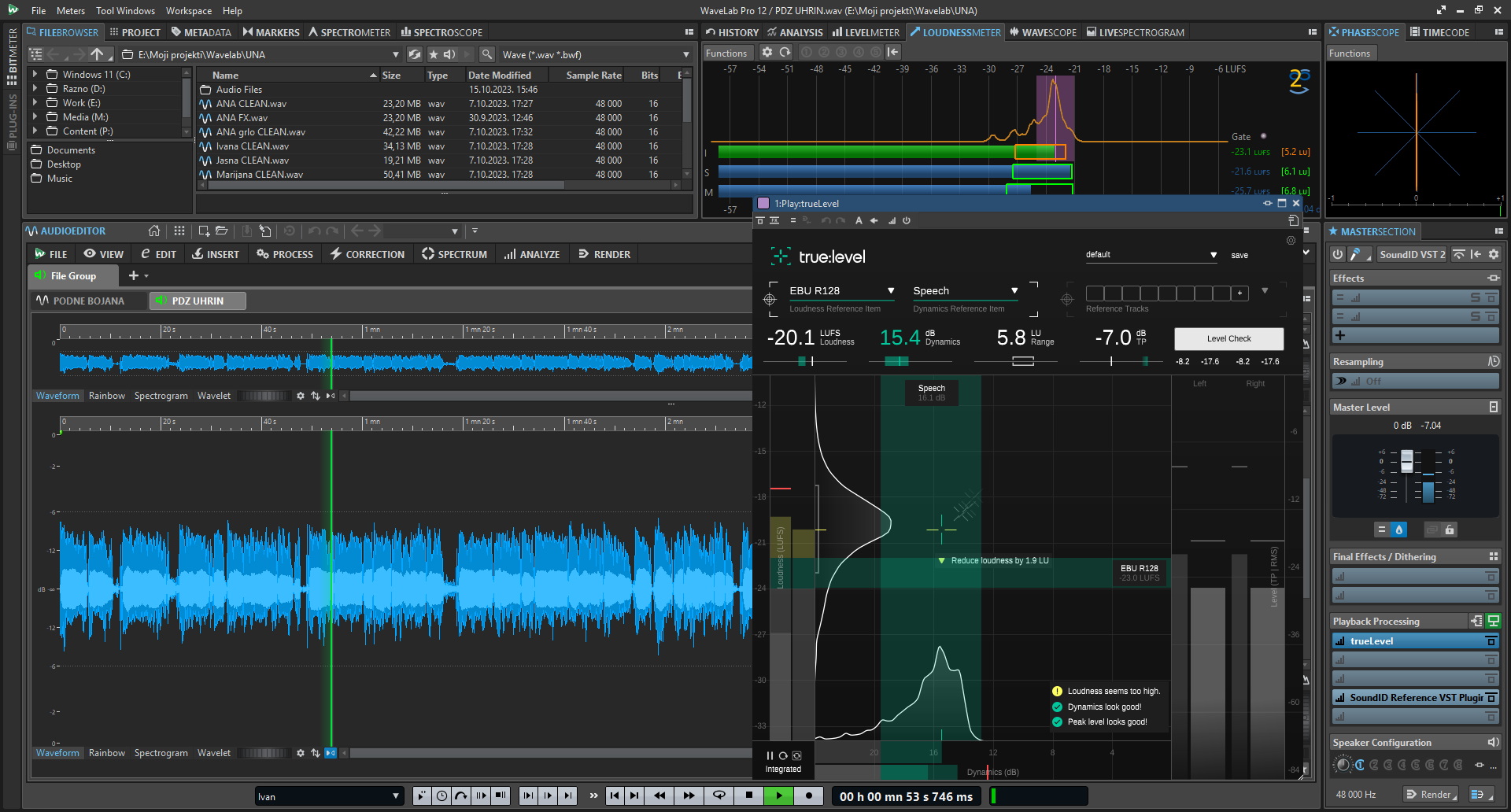

What am I doing wrong? I have an audio file that is optimized to -23 LUFS, Wabelab’s loudness meter shows that everything is ok -23 LUFS, but Sonible TrueMeter, or iZotope Insight, when it is in the Playback Processing slot, shows a higher value. Why is this happening? If I understand correctly, the Playback Processing slot is for various meter and correction plug-ins.

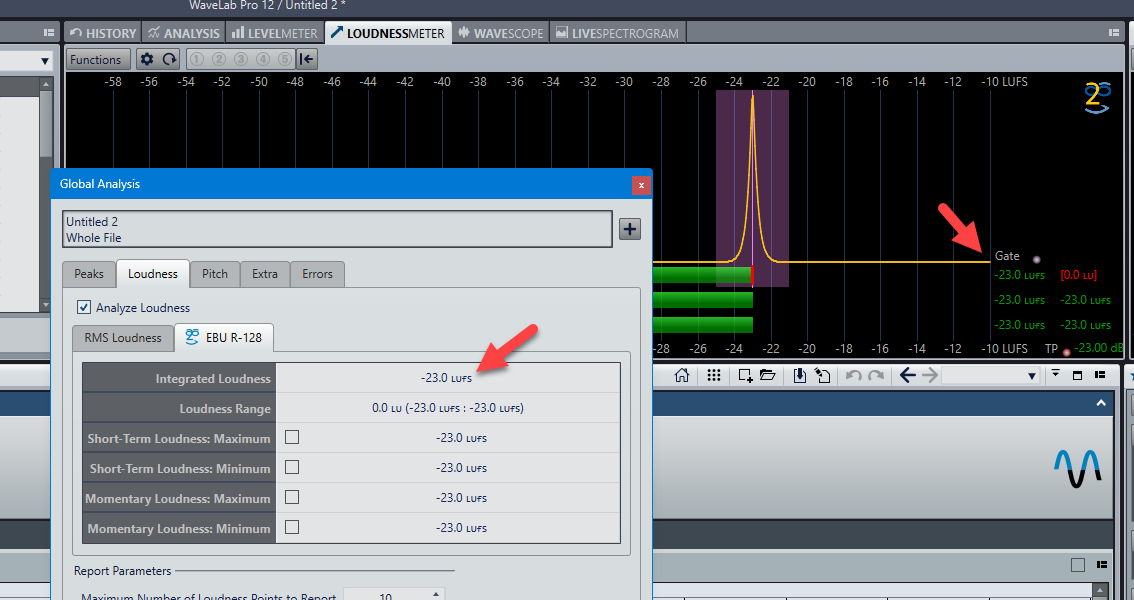

No idea. But to better check, take a stereo sine wave and normalize it to -23 dB. Then check again. In WaveLab 12.0.50, this is -23 LUFS in the Loudness meter, in the Global Analysis tool and in the Loudness report tool. I tried two loudness plugins (not yours) in the playback section, and they also show -23 LUFS.
There seem to be a -3dB offset in your case, but I ignore why.
I did another test. This time I used a test file that I downloaded from the following site Reference listening level signal | EBU Technology & Innovation
This reference listening level signal consists of 500-2000 Hz monophonic pink noise @ -23 LUFS.

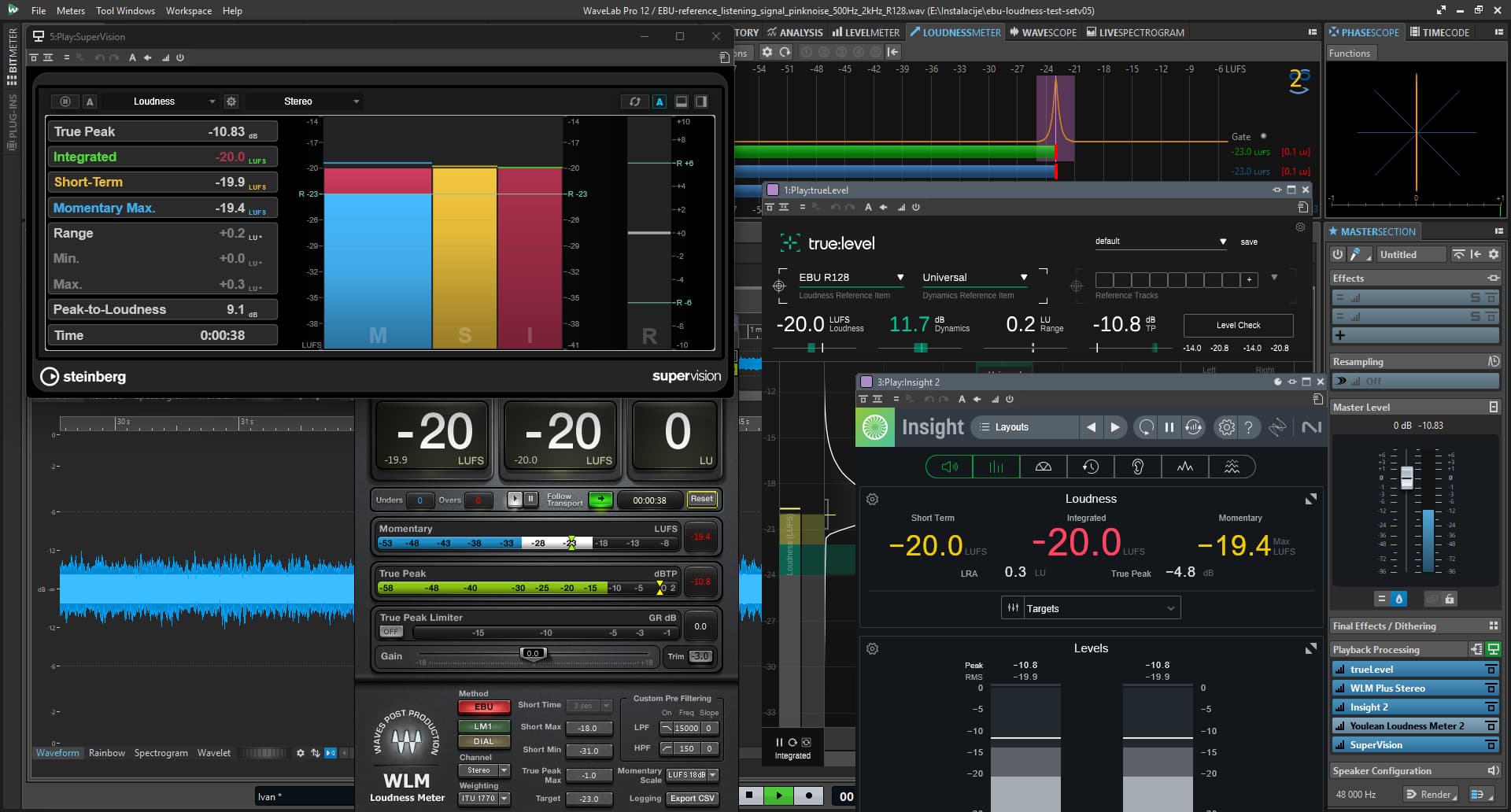

As you can see in the picture, all the analyzer plugins that are in the Playback Processing slot, the readings are -20 LUFS, only the Wavelab Loudness meter shows that it is -23 LUFS. Why the difference of 3 LUFS?
But, when I load a file containing stereo pink noise at -23 LUFS, the readings are correct.
Try making a test with the file I downloaded from the link above.
The explanation is simple: the playback section is a stereo signal, while the signal before is mono. The LUFS of the stereo audio is a loudness sum of two mono signals, which results in + 3dB. Hence what you see: -23 vs - 20.

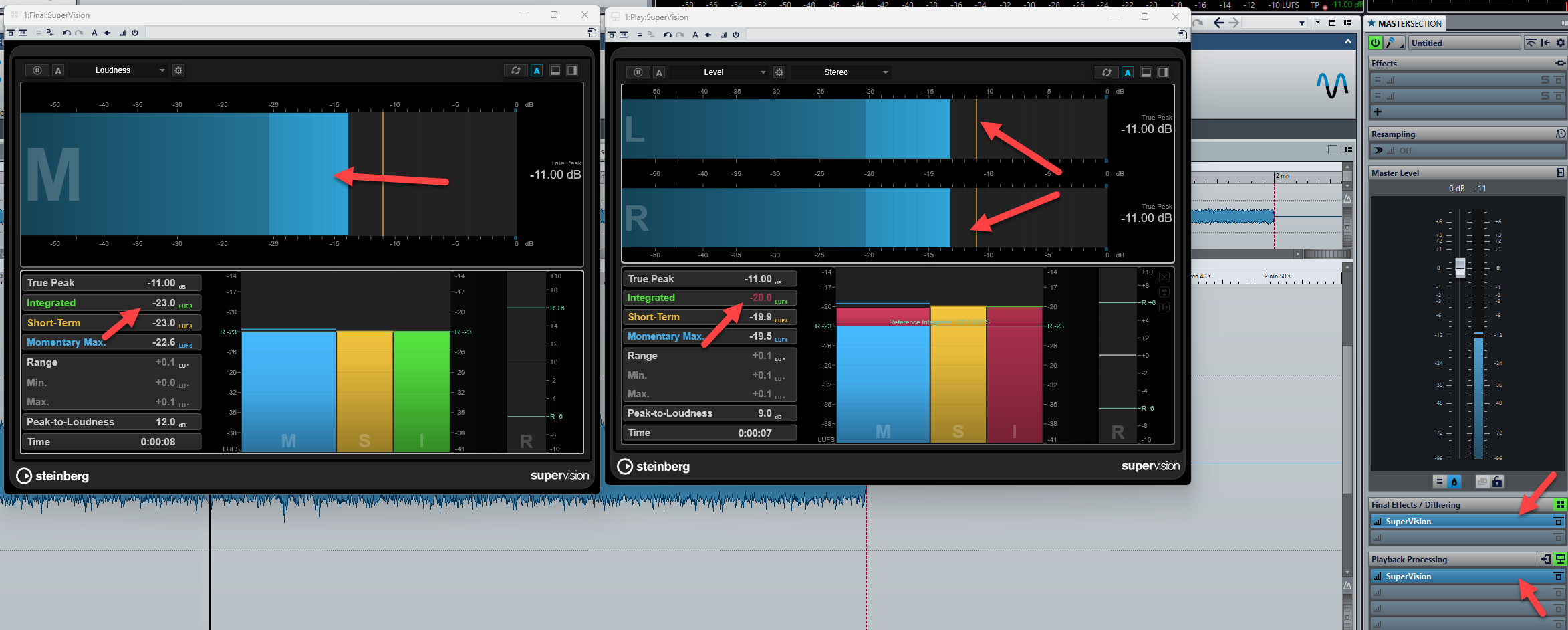

This is well illustrated by using two instances of the WaveLab Supervision plugin:
1 Like
This means that I cannot use 3rd party analyzer plugins in the Playback section, because I will always have wrong readings if I use mono files?!

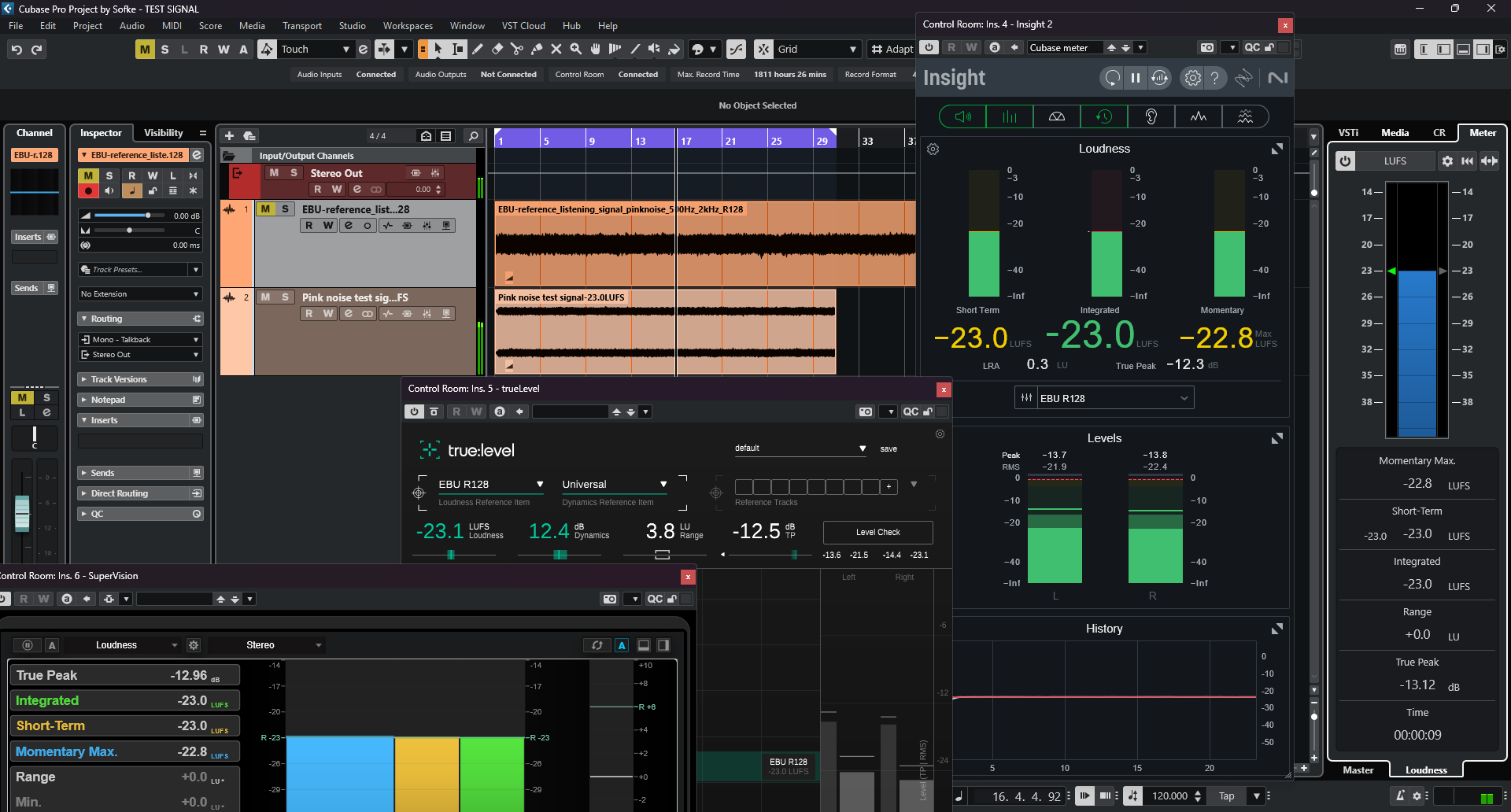

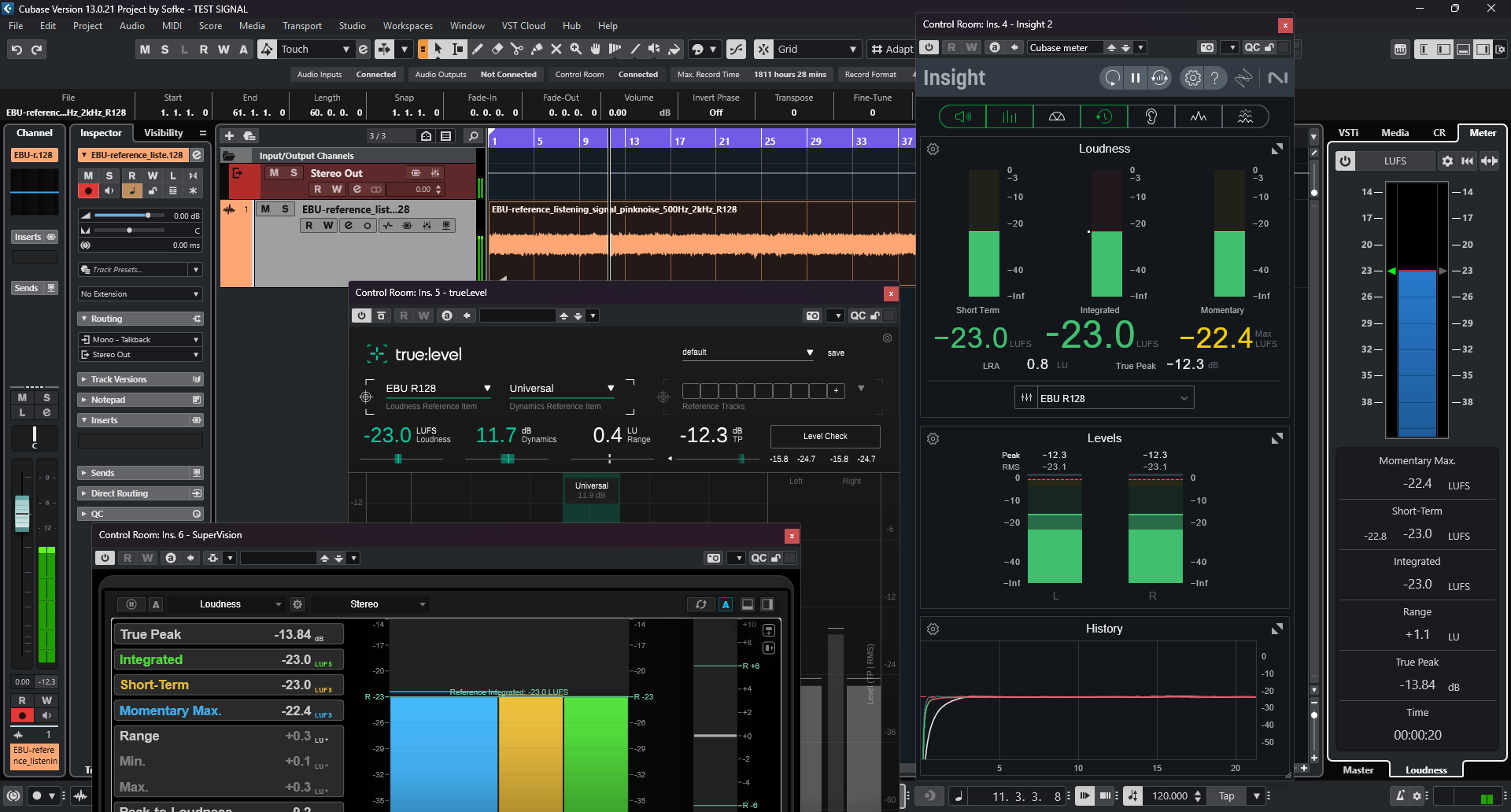

Cubase Pro 14, same EBU audio mono file, all readings are -23 LUFS, stereo file also -23 LUFS.
Hi!
But isn’t both WaveLab, Cubase metering and analyses good enough
for testing pink noises e.t.c …
regards S-EH
You can simply use your meter above in the master section as I show in my picture. A meter does not affect the audio signal and it’s no problem to have the meter there.
But why are you using real-time meters to measure Integrated Loudness? This is the worse way of doing so, since it requires to play the file in real-time from zero to end to have a value to trust.

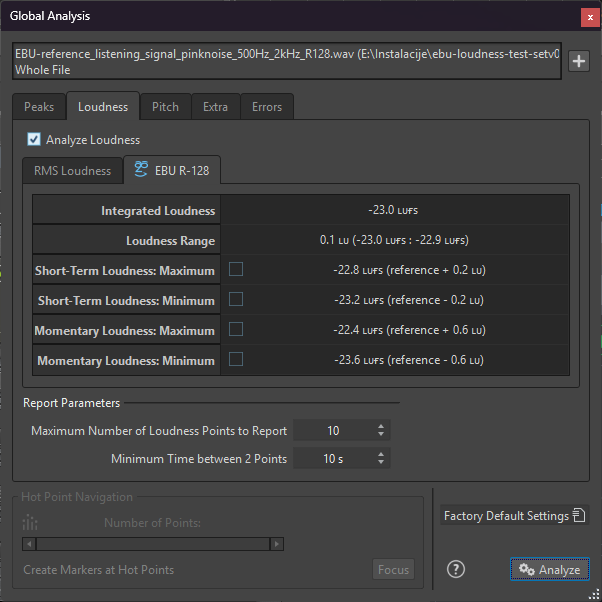

WaveLab has several other ways to measure the loudness in a much more practical and fast way, absent from other DAWs:
• The Loudness Report tool
• The Global Analysis
• The Visual Analysis
• The batch processor with the Analyis plugin.
Hello,
Sorry for the late reply
Yes, I am familiar with all the Wavelab features you listed in your answer…I like to use 3rd party plugins to measure LUFS. But, if they are not intended to be used in Wavelab, I will use what is already implemented in the program itself
Which plugins can be used in the Playback section?
How can I use the ADPTR AUDIO Metric AB plugin in Wavelab, can I use it at all because I get an error that it can’t?
Thank you very much!
And VST-3 plugin.
I have no knowledge about this plugin. I can’t help.
